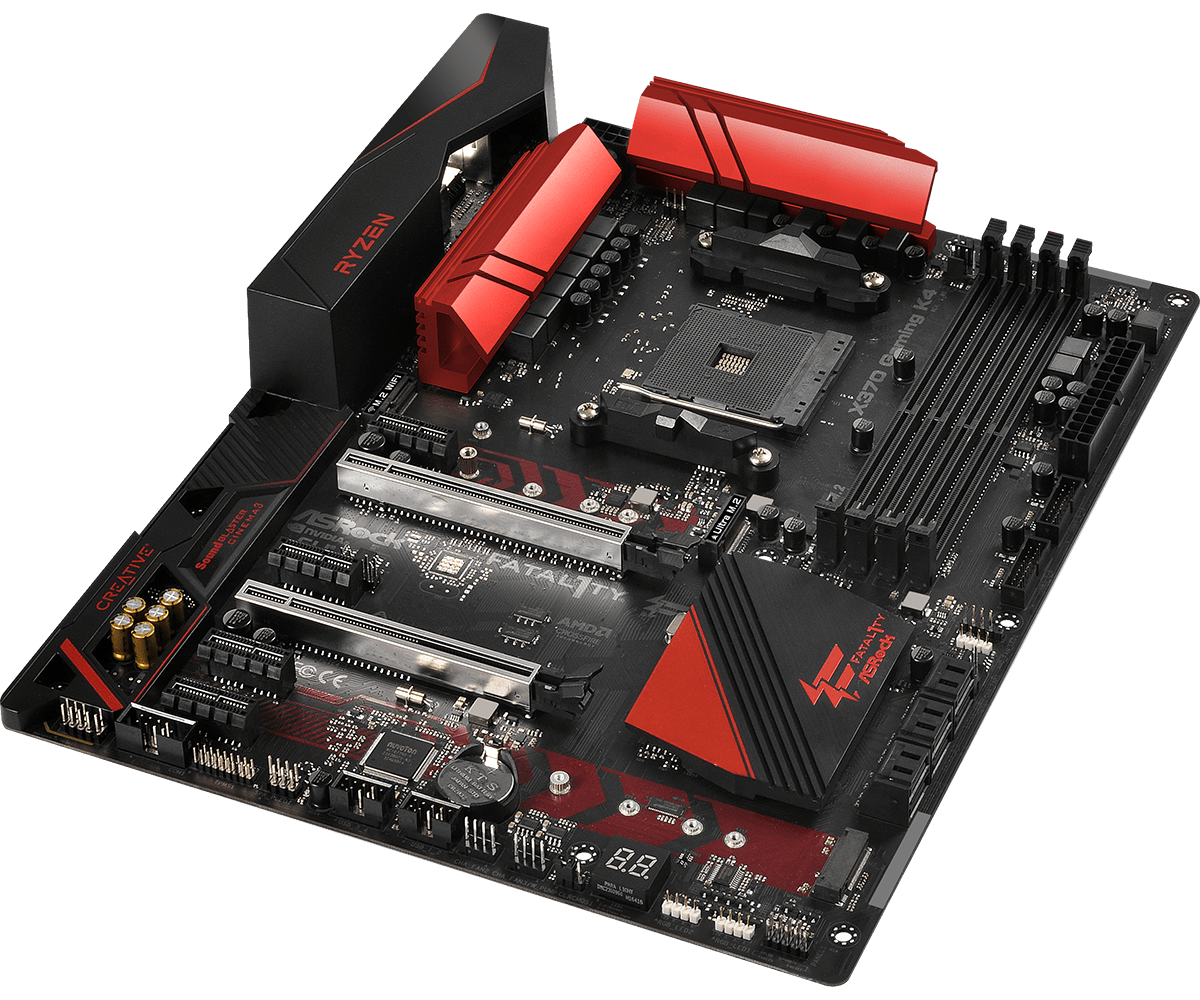

General Information
Manufacturer Asrock
Year 2017
Socket(s) 1x AM4
Form Factor ATX
Chipset AMD X370
Product Series Asrock Fatal1ty
Market Consumer
MSRP US $?
Manual Download Manual
Product Page Go to website
Comparison feature is in beta and not finished!

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 2x PS/2
Network

  • 2x Antenna Port
  • 1x RJ-45
USB

  • 6x USB 3.0 Type-A
  • 1x USB 3.1 Gen-2 Type-A
  • 1x USB 3.1 Gen-2 Type-C
Video

  • 1x HDMI Out

Internal Connections
Fans

  • 5x 4-pin Fan Header
Misc

  • 2x RGB Header
  • 1x Serial Header
  • 1x TPM Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 6x SATA3
USB

  • 2x USB 2.0 Header
  • 2x USB 3.0 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Red
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Intel I211-AT 1000 Mbit No

Expansion Slots
Slots

  • 2x PCI-E 3.0 x16 @ x16
  • 4x PCI-E 2.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1
Headphone Amplifer Texas Instruments NE5532

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2933 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support Yes

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2230, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 2230, 2242, 2260, 2280, PCI-E 2.0 x2, SATA3,
1x E-Key 2230, For Wifi Module Only

Reviews
Reviewer Review Language Review Type Review Date
Tom's Hardware English Video April 5, 2017 View Review
TweakTown English Video April 13, 2017 View Review
Play3r English Video April 24, 2017 View Review
