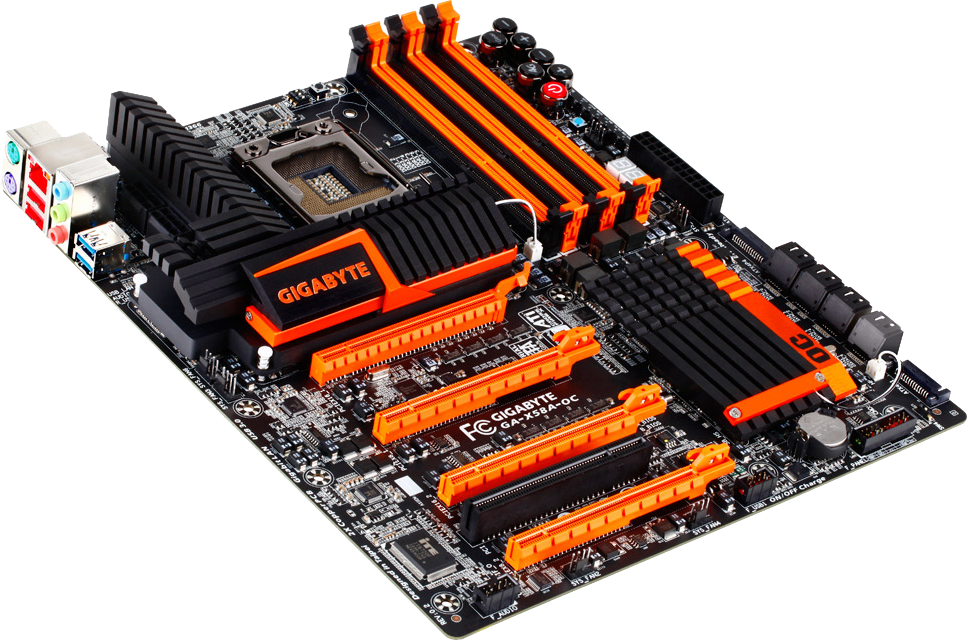

General Information
| Manufacturer | Gigabyte |
|---|---|
| Year | 2011 |
| Socket(s) |
1x
LGA 1366
|
| Form Factor |
E-ATX
305 x 264 mm |
| Chipset | Intel X58 |
| Product Series | Gigabyte OC |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

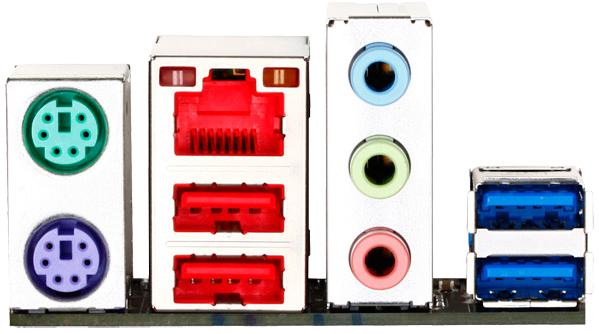

Back IO
Audio
- 3x Analog Audio Jack
Misc
- 2x PS/2
Network
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 1x 3-pin Fan header
- 7x 4-pin Fan Header
Power
- 1x 24-pin ATX Power
- 2x 8-pin 12V Power
- 2x SATA Power Connector
USB
- 1x USB 2 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111E | 1000 Mbit | No |
Expansion Slots
Slots
- 2x PCI-E 2.0 x16 @ x16
- 2x PCI-E 2.0 x16 @ x8
- 1x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
Notes
Support for 3-Way/2-Way NVIDIA SLI technology and 4-Way/3-Way/2-Way ATI CrossFireX™ technology
Audio
| Audiochip | Realtek ALC889 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 6 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 2200 MHz |
| Maximum Capacity | 24 GB |
| Maximum Channels | 3 |
| ECC support | No |
