General Information
| Manufacturer | Gigabyte |
|---|---|
| Year | 2010 |
| Socket(s) |
1x
LGA 1366
|
| Form Factor |
ATX
305 x 244 mm |
| Chipset | Intel X58 |
| Product Series | Gigabyte Ultra Durable |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

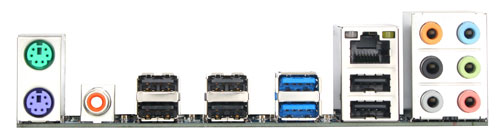

Back IO
Audio
- 6x Analog Audio Jack
- 1x Coaxial SPDIF Out
Misc
- 2x PS/2
Network
- 1x RJ-45
USB
- 6x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Internal Connections
Audio
- 1x SPDIF In Header
- 1x SPDIF Out Header
Fans
- 4x 3-pin Fan header
- 2x 4-pin Fan Header
Misc
- 1x CD In Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 1x Floppy Header
- 1x IDE 133/100/66
- 6x SATA2
USB
- 3x USB 2 Header
Misc. Information
| PCB Color | Blue |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111E | 1000 Mbit | No |
Expansion Slots
Slots
- 2x PCI-E 2.0 x16 @ x16
- 1x PCI-E 2.0 x16 @ x4
- 3x PCI-E 2.0 x1 @ x1
- 1x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
Notes
Support for ATI CrossFireX™/NVIDIA SLI technology Technology (The PCIEX16_1 and PCIEX16_2 slots only.)
Audio
| Audiochip | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 6 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 2200 MHz |
| Maximum Capacity | 24 GB |
| Maximum Channels | 3 |
| ECC support | No |
