General Information
Manufacturer Asrock
Year 2009
Socket(s) 1x LGA 1366
Form Factor ATX
305 x 244 mm
Chipset Intel X58
Market Consumer
MSRP US $170.00
Product Page Go to website
Comparison feature is in beta and not finished!

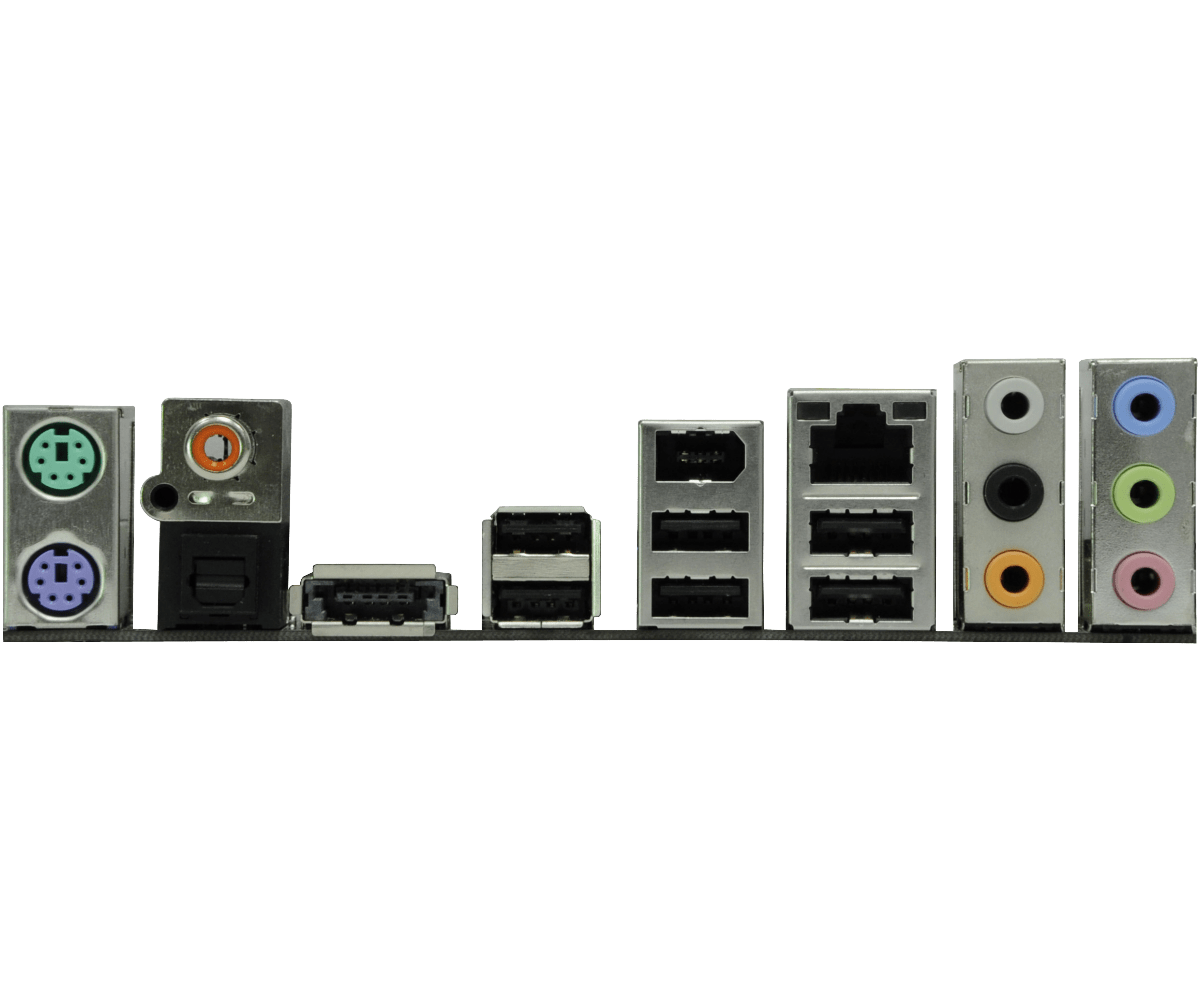

Back IO
Audio

  • 6x Analog Audio Jack
  • 1x Coaxial SPDIF Out
  • 1x Optical SPDIF Out
Misc

  • 2x PS/2
Network

  • 1x RJ-45
Storage

  • 1x FireWire 400 6-pin
  • 1x eSATA2 / USB 2.0
USB

  • 6x USB 2.0 Type-A

Internal Connections
Audio

  • 1x SPDIF Out Header
Fans

  • 4x 3-pin Fan header
  • 1x 4-pin Fan Header
Misc

  • 1x CD In Header
  • 1x IR Header
  • 1x Serial Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 1x Floppy Header
  • 1x IDE 133/100/66
  • 6x SATA2
USB

  • 3x USB 2.0 Header

Misc. Information
PCB Color Black
Other Colors
  • Blue
  • Gold
  • White

Network
Wired
Amount Chip Speed For IPMI
1x Realtek RTL8111DL 1000 Mbit No

Expansion Slots
Slots

  • 2x PCI-E 2.0 x16 @ x16
  • 2x PCI-E 2.0 x16 @ x8
  • 3x PCI 5V @ 32-bit
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes
Notes

- Supports ATI™ Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™


Audio
Audiochip Realtek ALC890
Audio Channels 7.1

Memory

This board has 6 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 2000 MHz
Maximum Capacity 24 GB
Maximum Channels 3
ECC support No
