General Information
| Manufacturer | Asrock |
|---|---|
| Year | 2018 |
| Socket(s) |
1x
AM4
|
| Form Factor |
Micro-ATX
244 x 244 mm |
| Chipset | AMD B450 |
| Product Series | Asrock Pro |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

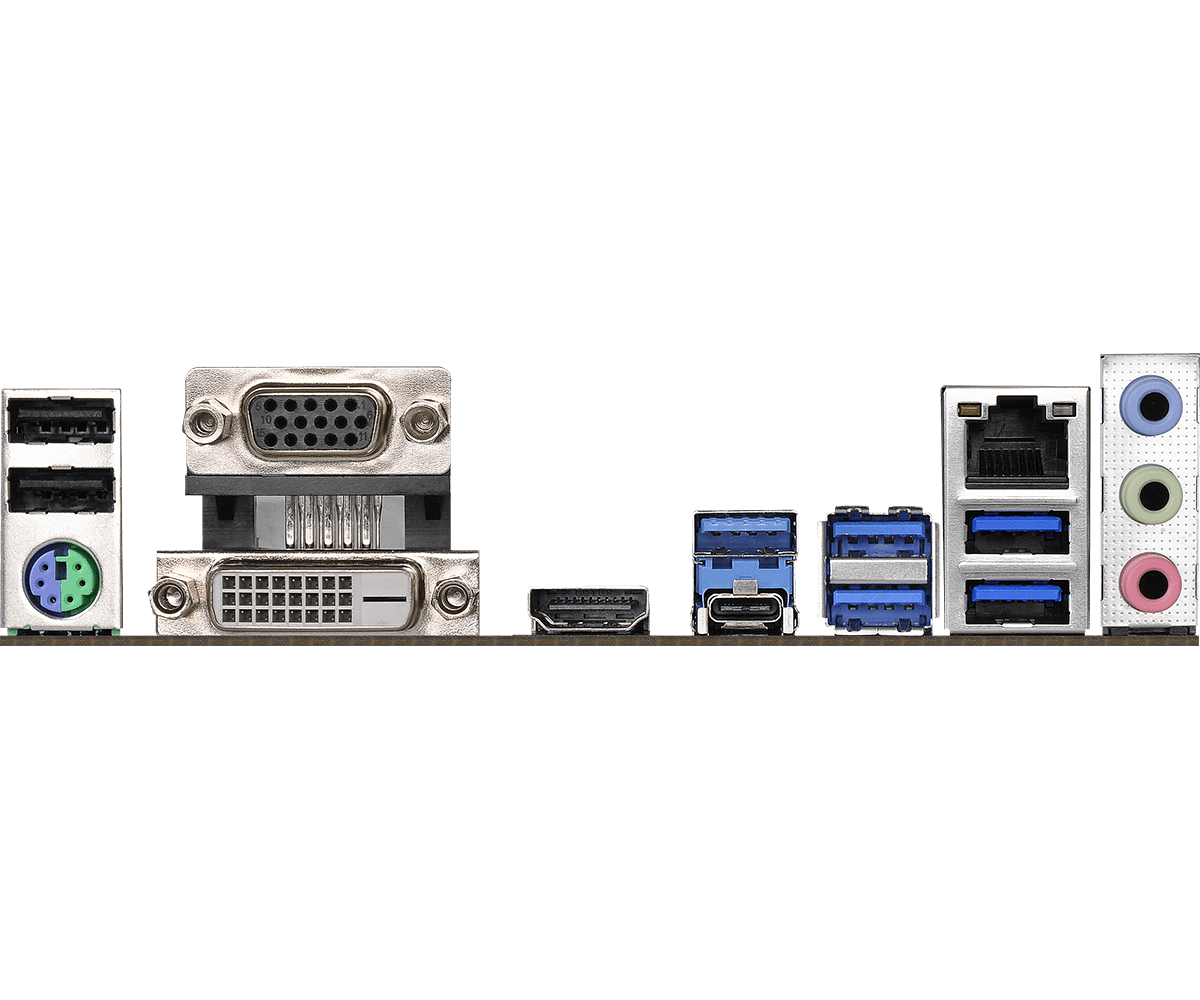

Back IO
Audio
- 3x Analog Audio Jack
Misc
- 1x PS/2
Network
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 4x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 2 Type-A
- 1x USB 3 Gen 2 Type-C
Video
- 1x DVI-D
- 1x HDMI Out
- 1x VGA
Internal Connections
Fans
- 5x 4-pin Fan Header
Misc
- 1x Addressable LED Header
- 1x Chassis Intrusion Header
- 1x RGB Header
- 1x Serial Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 4x SATA3
USB
- 2x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111H | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
- 1x PCI-E 3.0 x16 @ x4
- 1x PCI-E 2.0 x1 @ x1
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 3200 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 2 |
| ECC support | Yes |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2260, 2280, | PCI-E 3.0 x4, |
| 1x | M-Key | 2230, 2242, 2260, 2280, | SATA3, |
