General Information
Manufacturer Asrock
Year 2018
Socket(s) 1x AM4
Form Factor Mini-ITX
170 x 170 mm
Chipset AMD A320
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

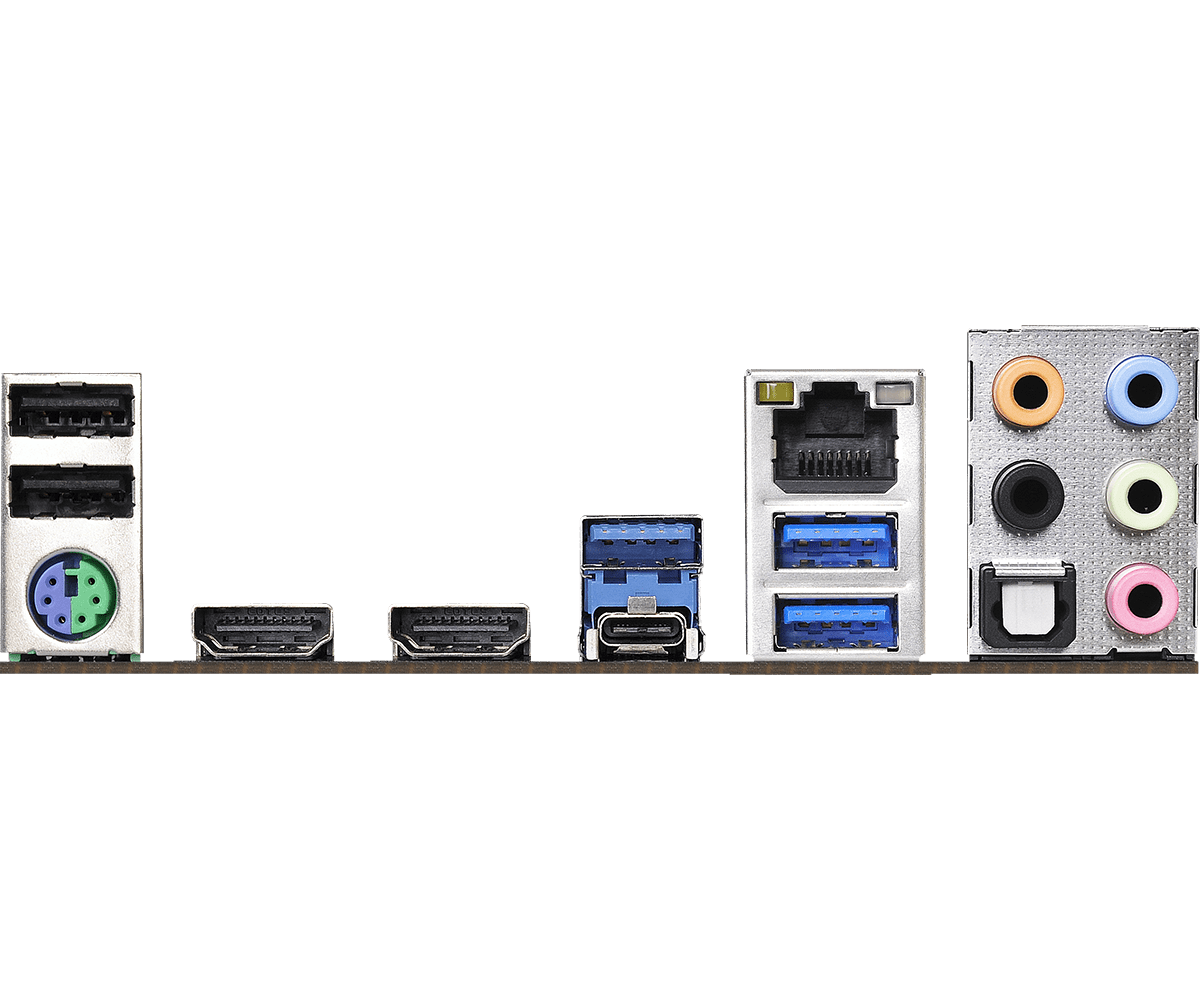

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 1x RJ-45
USB

  • 2x USB 2 Type-A
  • 3x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 1 Type-C
Video

  • 2x HDMI Out

Internal Connections
Fans

  • 3x 4-pin Fan Header
Misc

  • 1x LPC Header
  • 1x RGB Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 4x SATA3
USB

  • 1x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray

Network
Wired
Amount Chip Speed For IPMI
1x Intel I211-AT 1000 Mbit No

Wireless

Bluetooth Version 5.0
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 2 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 3466 MHz
Maximum Capacity 32 GB
Maximum Channels 2
ECC support Yes

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2280, PCI-E 3.0 x4, SATA3,

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
