General Information
| Manufacturer | Biostar |
|---|---|
| Year | 2005 |
| Socket(s) |
1x
LGA 775
|
| Form Factor |
Micro-ATX
202 x 244 mm |
| Chipset | VIA P4M800 |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |
Back IO
Audio
- 3x Analog Audio Jack
Misc
- 2x PS/2
- 1x Parallel Port
- 1x Serial Port
Network
- 1x RJ-45
USB
- 4x USB 2 Type-A
Video
- 1x VGA
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 2x 3-pin Fan header
Misc
- 1x CD In Header
- 1x Chassis Intrusion Header
Power
- 1x 20-pin ATX Power
- 1x 4-pin 12V Power
Storage
- 1x Floppy Header
- 2x IDE
- 2x SATA1
USB
- 1x USB 2 Header
Misc. Information

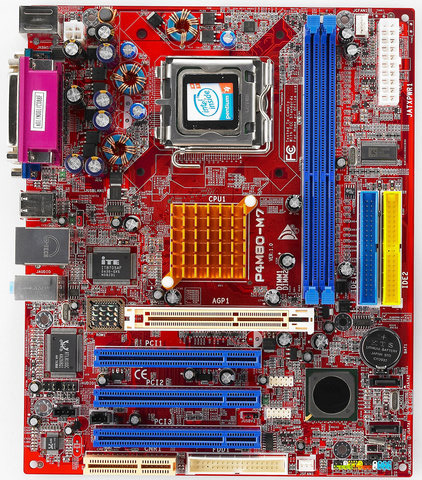

| PCB Color | Red |
|---|---|
| Other Colors |
|
| Onboard GPU | VIA S3 UniChrome |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8100C | 100 Mbit | No |
Expansion Slots
Slots
- 3x PCI 5V @ 32-bit
- 1x AGP 1.5V @ x8
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC655 |
|---|---|
| Audio Channels | 5.1 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR1 |
|---|---|
| Slot Type | 184-pin DIMM |
| Maximum Speed | 400 MHz |
| Maximum Capacity | 2 GB |
| Maximum Channels | 1 |
| ECC support | No |
