General Information
Manufacturer MSI
Year 2019
Socket(s) 1x AM4
Form Factor E-ATX
272 x 305 mm
Chipset AMD X570
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

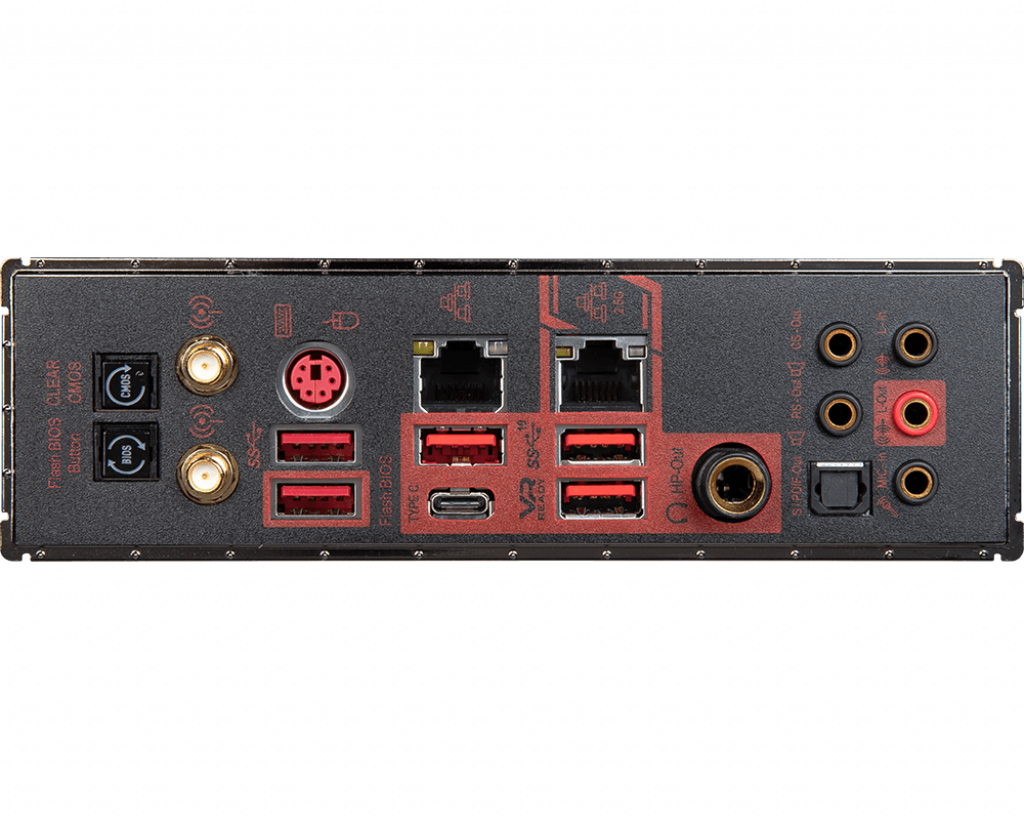

Back IO
Audio
  • 1x 6.3mm Headphone Jack
  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc
  • 1x PS/2
Network
  • 2x Antenna Port
  • 2x RJ-45
USB
  • 2x USB 3 Gen 1 Type-A
  • 3x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C

Internal Connections
Fans
  • 1x 3-pin Fan header
  • 9x 4-pin Fan Header
Misc
  • 2x Addressable LED Header
  • 1x Corsair Addressable RGB Header
  • 1x RGB Header
Power
  • 1x 24-pin ATX Power
  • 2x 8-pin 12V Power
Storage
  • 6x SATA3
USB
  • 2x USB 2 Header
  • 2x USB 3 Gen 1 Header
  • 1x USB 3 Gen 2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Silver
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Killer E3000 2500 Mbit No
1x Killer E2500 1000 Mbit No

Wireless
Bluetooth Version 5.0
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ax

Expansion Slots
Slots
  • 1x PCI-E 4.0 x16 @ x16
  • 1x PCI-E 4.0 x16 @ x8
  • 1x PCI-E 4.0 x16 @ x4
  • 1x PCI-E 4.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4800 MHz
Maximum Capacity 128 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2242, 2260, 2280, PCI-E 4.0 x4, SATA3,
1x M-Key 2242, 2260, 2280, PCI-E 4.0 x4, SATA3,
1x M-Key 22110, 2242, 2260, 2280, PCI-E 4.0 x4,
