General Information
Manufacturer Gigabyte
Year 2019
Socket(s) 1x LGA 3647
Form Factor E-ATX
359 x 386 mm
Chipset Intel C621
Product Series Gigabyte Aorus
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

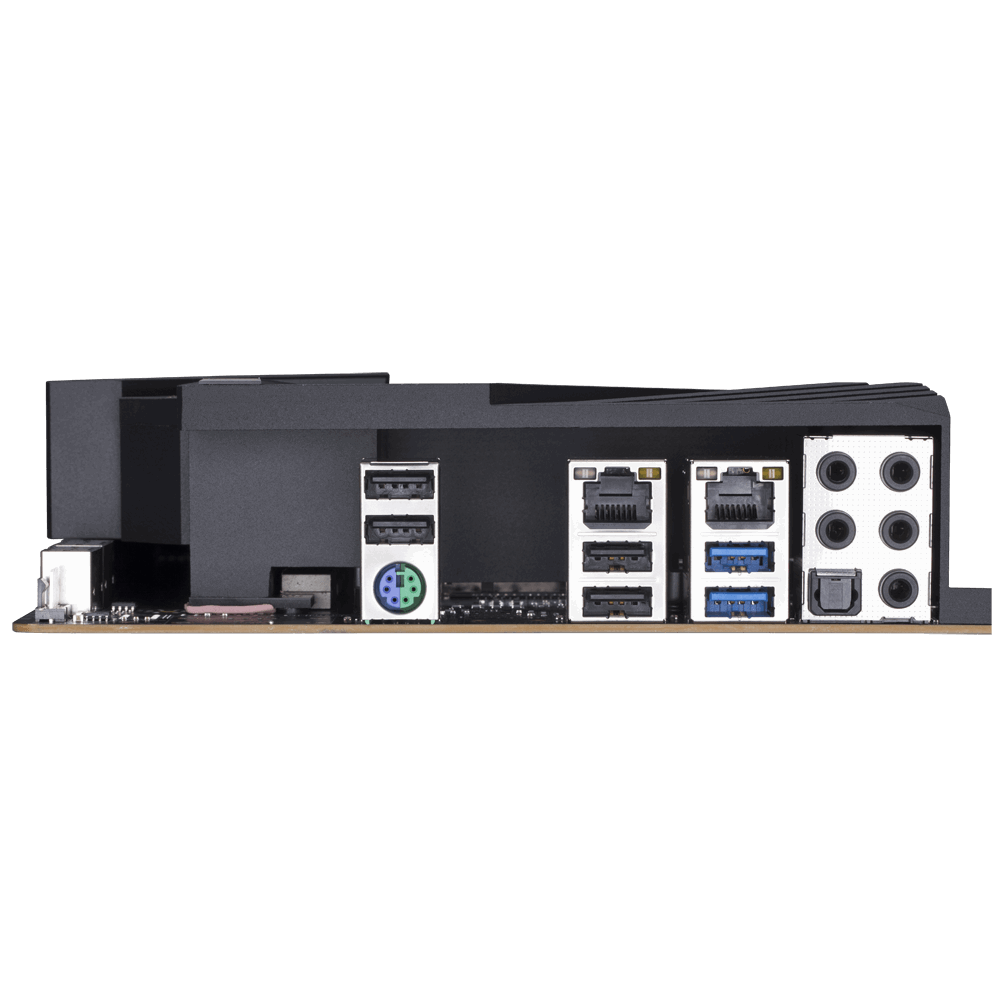

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 2x RJ-45
USB

  • 4x USB 2 Type-A
  • 2x USB 3 Gen 1 Type-A

Internal Connections
Audio

  • 1x SPDIF Out Header
Fans

  • 8x 4-pin Fan Header
Misc

  • 2x Addressable LED Header
  • 2x RGB Header
  • 2x SGPIO
  • 1x Serial Header
  • 1x TPM Header
  • 1x VROC Header
Power

  • 2x 24-pin ATX Power
  • 2x 6-pin 12V Power
  • 4x 8-pin 12V Power
  • 1x PMBus Header
  • 2x SATA Power Header
Storage

  • 8x SATA3
  • 1x U.2
USB

  • 1x USB 2 Header
  • 1x USB 3 Gen 1 Header
  • 1x USB 3 Gen 1 Type-A

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray

Network
Wired
Amount Chip Speed For IPMI
1x Intel I219-LM 1000 Mbit No
1x Intel I210-AT 1000 Mbit No

Expansion Slots
Slots

  • 2x PCI-E 3.0 x16 @ x16
  • 4x PCI-E 3.0 x16 @ x8
  • 1x PCI-E 3.0 x16 @ x4
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 12 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4200 MHz
Maximum Capacity 192 GB
Maximum Channels 6
ECC support Yes

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
