General Information
Manufacturer Asrock
Year 2019
Socket(s) 1x Onboard CPU
Form Factor Mini-ITX
170 x 170 mm
Northbridge None
Southbridge None
Market Server
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

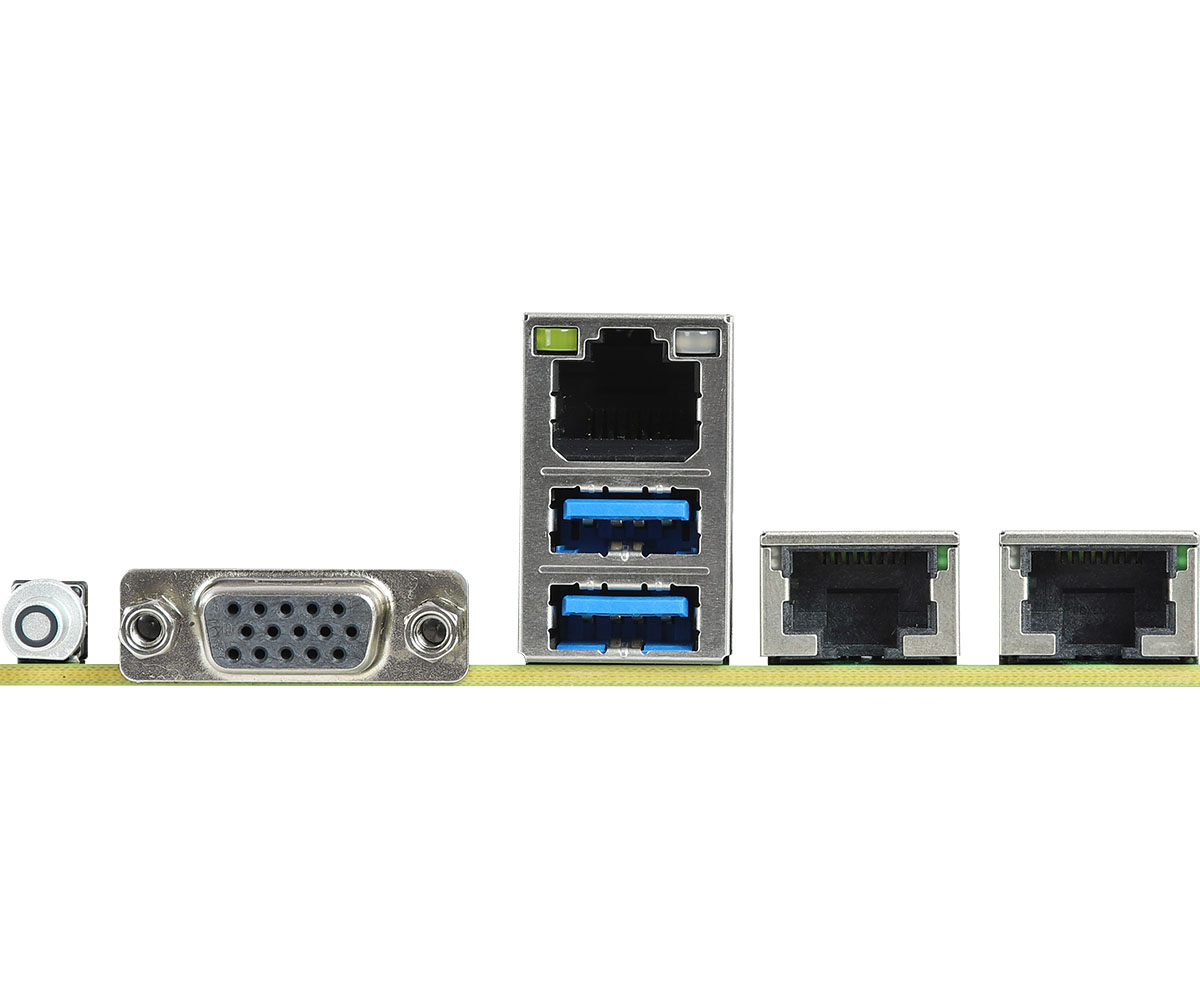

Back IO
Network
  • 3x RJ-45
USB
  • 2x USB 3 Gen 1 Type-A
Video
  • 1x VGA

Internal Connections
Fans
  • 3x 4-pin Fan Header
Misc
  • 1x SGPIO
  • 1x SMBus Header
  • 1x Serial Header
  • 1x TPM Header
Network
  • 1x IPMB Header
Power
  • 2x 4-pin 12V Power
  • 1x 8-pin 12V Power
Storage
  • 1x OCulink
  • 2x SATA3
USB
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Green
Other Colors
  • Blue
  • Silver
  • White
Onboard CPU AMD Epyc 3101
Onboard GPU Aspeed AST2500

Network
Wired
Amount Chip Speed For IPMI
2x Intel X550-AT2 10000 Mbit No
1x Realtek RTL8211E 1000 Mbit Yes

Expansion Slots
Slots
  • 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip This board has no onboard audio
Audio Channels

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2666 MHz
Maximum Capacity 256 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2280, PCI-E 3.0 x4, SATA3,

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
