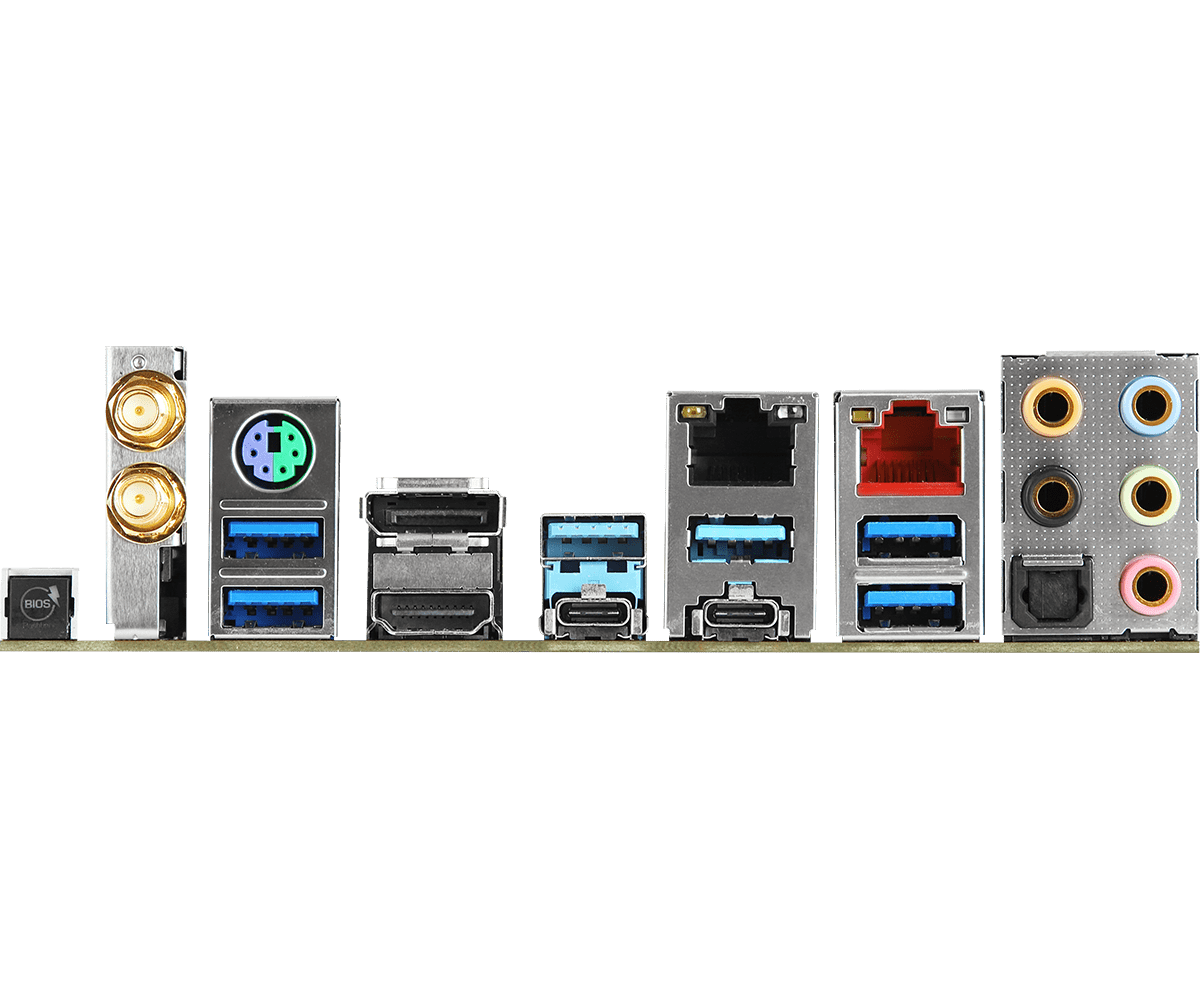

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
- 2x Thunderbolt 3 (USB 3 Gen 2 Type-C)
Network
- 2x Antenna Port
- 2x RJ-45
USB
- 6x USB 3 Gen 1 Type-A
Video
- 1x DisplayPort
- 1x HDMI Out
Internal Connections
Fans
- 5x 4-pin Fan Header
Misc
- 1x Addressable LED Header
- 1x RGB Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 4-pin 12V Power
- 1x 8-pin 12V Power
Storage
- 8x SATA3
USB
- 1x USB 2 Header
- 2x USB 3 Gen 1 Header
- 1x USB 3 Gen 2 Header
Video
- 1x DisplayPort In
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Aquantia AQC107 | 10000 Mbit | No |
| 1x | Intel I211-AT | 1000 Mbit | No |
Wireless
| Bluetooth Version | 5.0 |
|---|---|
| Wifi 5GHz Support | Yes |
| Wifi Protocol | 802.11 a/b/g/n/ax |
Expansion Slots
Slots
- 1x PCI-E 4.0 x16 @ x16
- 1x PCI-E 4.0 x16 @ x8
- 1x PCI-E 4.0 x16 @ x4
- 3x PCI-E 2.0 x1 @ x1
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
Audio
| Audiochip | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 |
| Headphone Amplifer | Texas Instruments NE5532 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 4666 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 22110, 2260, 2280, | PCI-E 4.0 x4, |
| 1x | M-Key | 22110, 2230, 2242, 2260, 2280, | PCI-E 4.0 x4, SATA3, |
| 1x | E-Key | 2230, | For Wifi Module Only |
