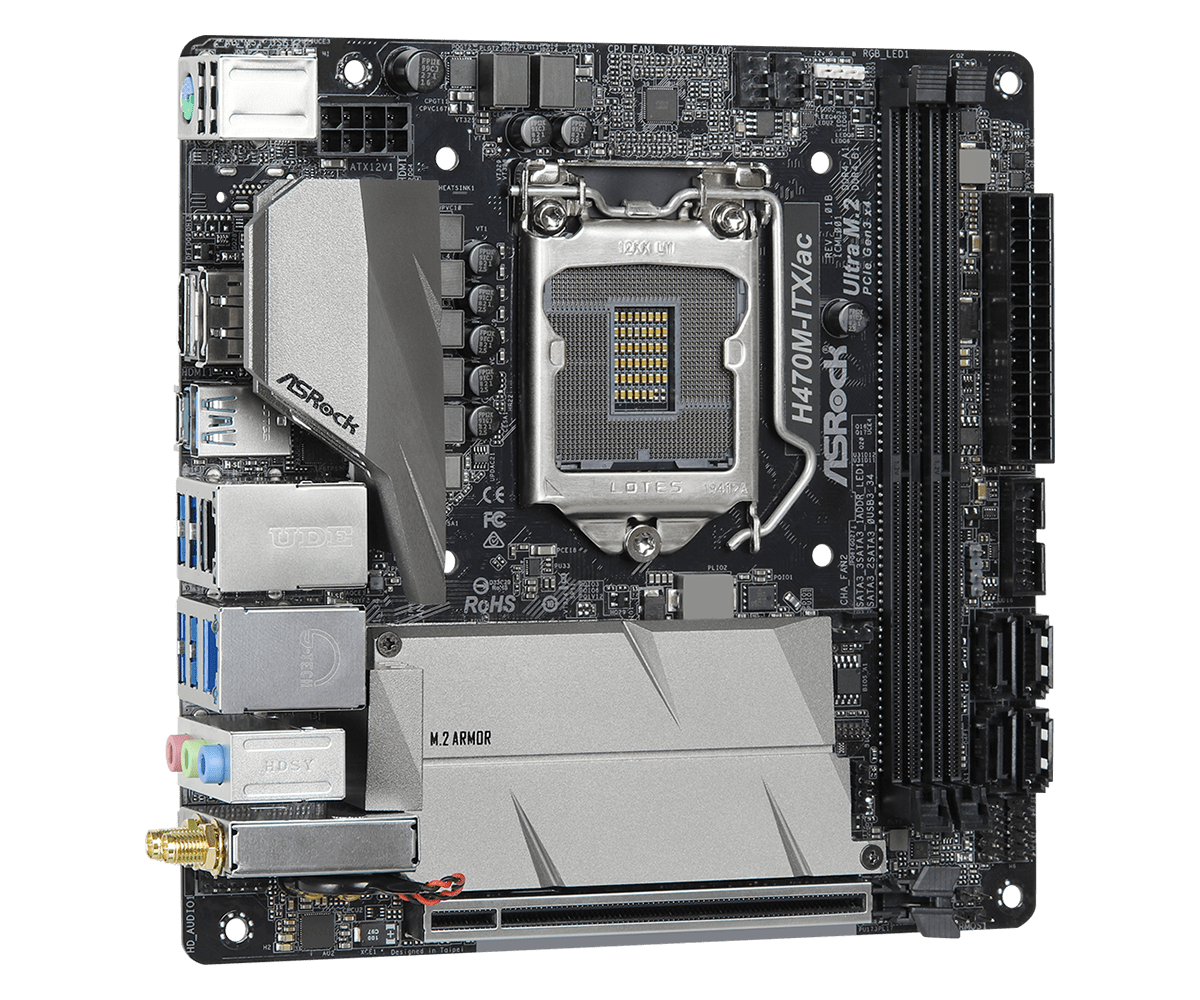

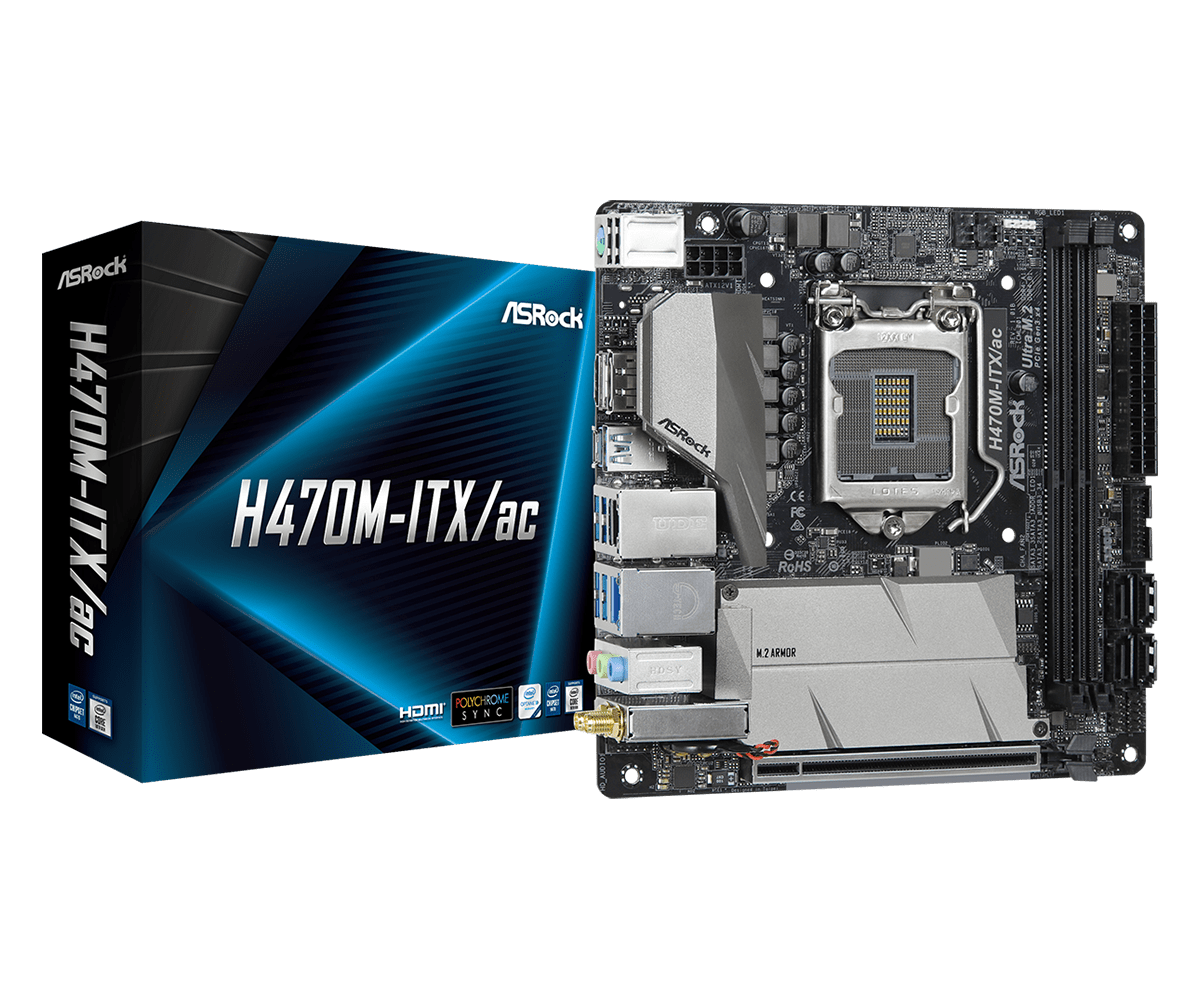

General Information
Manufacturer Asrock
Year 2020
Socket(s) 1x LGA 1200
Form Factor Mini-ITX
170 x 170 mm
Chipset Intel H470
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!
Back IO
Audio
  • 3x Analog Audio Jack
Misc
  • 1x PS/2
Network
  • 2x Antenna Port
  • 2x RJ-45
USB
  • 2x USB 2 Type-A
  • 1x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 1 Type-C
  • 4x USB 3 Gen 2 Type-A
Video
  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections
Fans
  • 3x 4-pin Fan Header
Misc
  • 1x Addressable LED Header
  • 1x RGB Header
Power
  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage
  • 4x SATA3
USB
  • 1x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray

Network
Wired
Amount Chip Speed For IPMI
1x Realtek RTL8125BG 2500 Mbit No
1x Intel I219-V 1000 Mbit No

Wireless
Bluetooth Version 4.2
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots
  • 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip Realtek ALC1200
Audio Channels 7.1

Memory

This board has 2 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2933 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 2280, PCI-E 3.0 x4,
1x E-Key 2230, For Wifi Module Only

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
