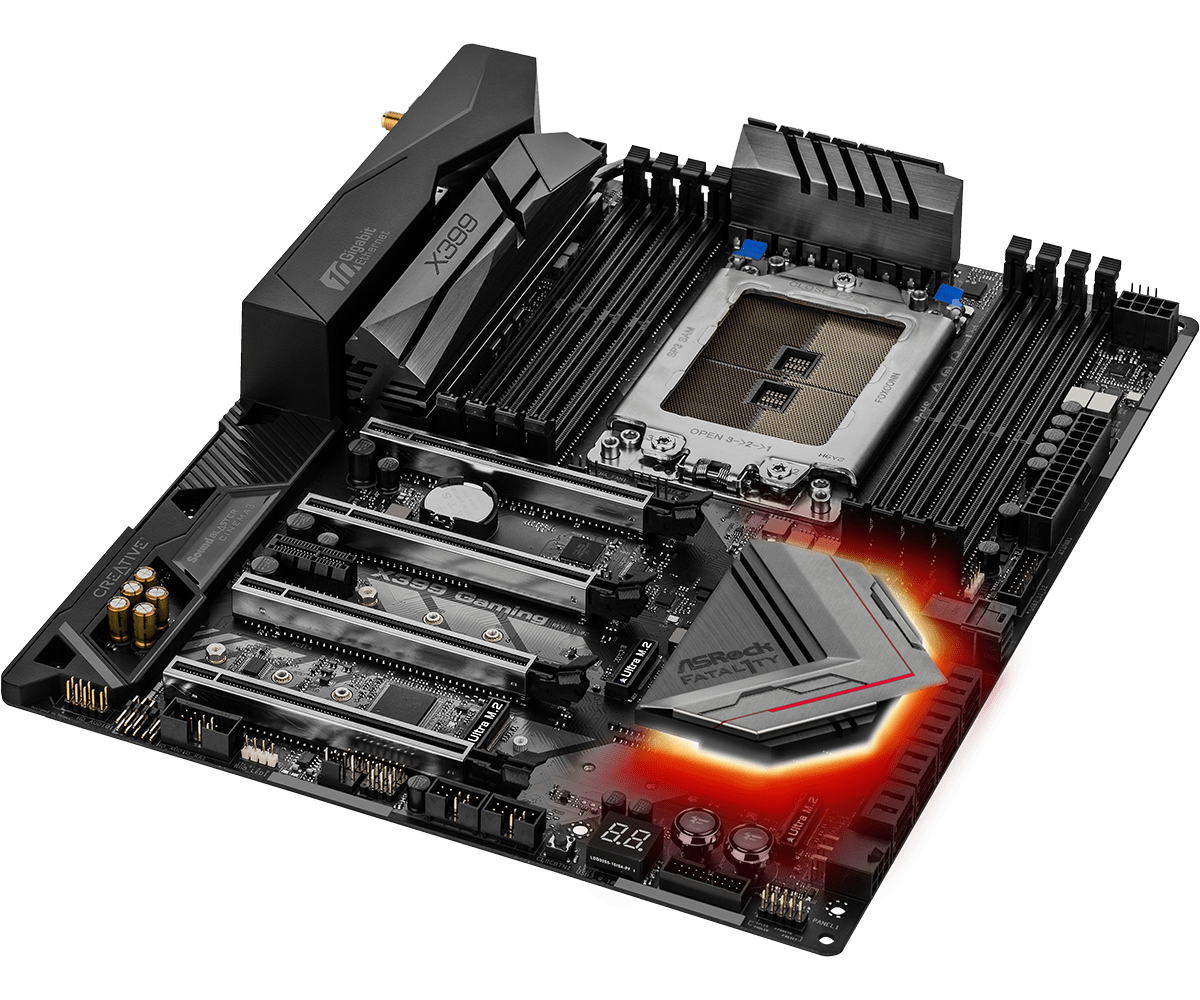

General Information
Manufacturer Asrock
Year 2017
Socket(s) 1x TR4
Form Factor ATX
244 x 305 mm
Chipset AMD X399
Product Series Asrock Fatal1ty
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 2x Antenna Port
  • 3x RJ-45
USB

  • 8x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C

Internal Connections
Fans

  • 5x 4-pin Fan Header
Misc

  • 2x RGB Header
  • 1x Serial Header
Power

  • 1x 24-pin ATX Power
  • 1x 4-pin 12V Power
  • 1x 8-pin 12V Power
Storage

  • 8x SATA3
  • 1x U.2
USB

  • 2x USB 2 Header
  • 2x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Aquantia AQC107 10000 Mbit No
2x Intel I211-AT 1000 Mbit No

Wireless

Bluetooth Version 4.2
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 4x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 2.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1
Headphone Amplifer Texas Instruments NE5532

Memory

This board has 8 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 3600 MHz
Maximum Capacity 128 GB
Maximum Channels 4
ECC support Yes

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x E-Key 2230, For Wifi Module Only
2x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 2230, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,

Reviews
Reviewer Review Language Review Type Review Date
TechTesters Dutch Written Aug. 28, 2017 View Review
TweakTown English Written Sept. 18, 2017 View Review
Level1Techs English Written Oct. 8, 2017 View Review
