General Information
| Manufacturer | Biostar |
|---|---|
| Year | 2017 |
| Socket(s) |
1x
AM4
|
| Form Factor |
Mini-ITX
170 x 170 mm |
| Chipset | AMD X370 |
| Product Series | Biostar Racing |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

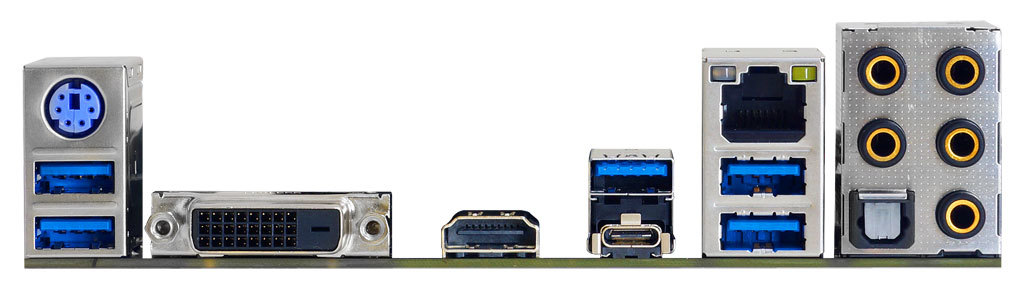

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
Network
- 1x RJ-45
USB
- 4x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 2 Type-A
- 1x USB 3 Gen 2 Type-C
Video
- 1x DVI-D
- 1x HDMI Out
Internal Connections
Fans
- 2x 4-pin Fan Header
Misc
- 2x RGB Header
Power
- 1x 24-pin ATX Power
- 1x 4-pin 12V Power
Storage
- 4x SATA3
USB
- 1x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
| LED Color | RGB |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8118AS | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 3200 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | Yes |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2260, 2280, | PCI-E 3.0 x4, SATA3, |
Reviews
| Reviewer | Review Language | Review Type | Review Date | |
|---|---|---|---|---|
| Hardware Canucks | English | Video | June 4, 2017 | View Review |
| TweakTown | English | Video | June 28, 2017 | View Review |
