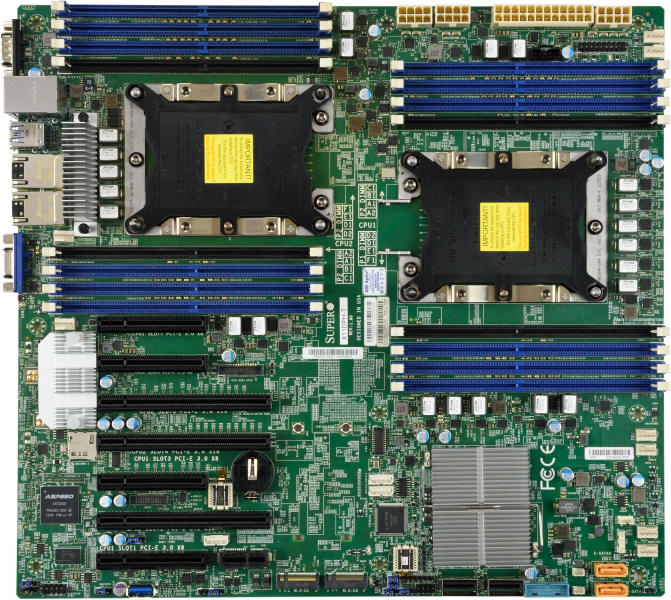

General Information
| Manufacturer | Supermicro |
|---|---|
| Year | 2017 |
| Socket(s) |
2x
LGA 3647
|
| Form Factor |
E-ATX
330 x 305 mm |
| Chipset | Intel C624 |
| Market | Consumer |
| MSRP | US $? |
| Manual | Download Manual |
| Product Page | Go to website |
Back IO
Misc
- 1x Serial Port
Network
- 3x RJ-45
USB
- 4x USB 3 Gen 1 Type-A
Video
- 1x VGA
Internal Connections
Fans
- 8x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x SGPIO
- 1x TPM Header
- 1x VROC Header
Power
- 1x 24-pin ATX Power
- 3x 8-pin 12V Power
- 2x SATA DOM Power Header
Storage
- 10x SATA3
USB
- 1x USB 3 Gen 1 Header
- 1x USB 3 Gen 1 Type-A
Misc. Information
| PCB Color | Green |
|---|---|
| Other Colors |
|
| Onboard GPU | Aspeed AST2500 |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 2x | Intel X557 | 10000 Mbit | No |
| 1x | Realtek RTL8211E-VB-CG | 1000 Mbit | Yes |
Expansion Slots
Slots
- 3x PCI-E 3.0 x16 @ x16
- 4x PCI-E 3.0 x8 @ x8
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | This board has no onboard audio |
|---|---|
| Audio Channels |
Memory
This board has 16 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 2666 MHz |
| Maximum Capacity | 2 TB |
| Maximum Channels | 6 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 2x | M-Key | 22110, 2260, 2280, | PCI-E 3.0 x4, |
