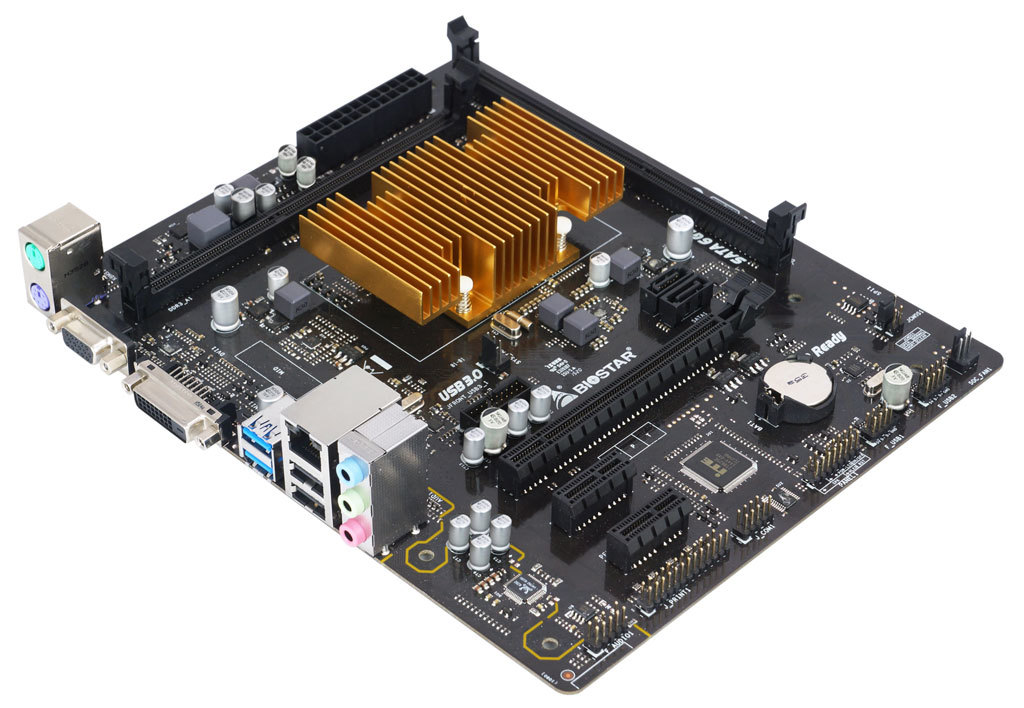

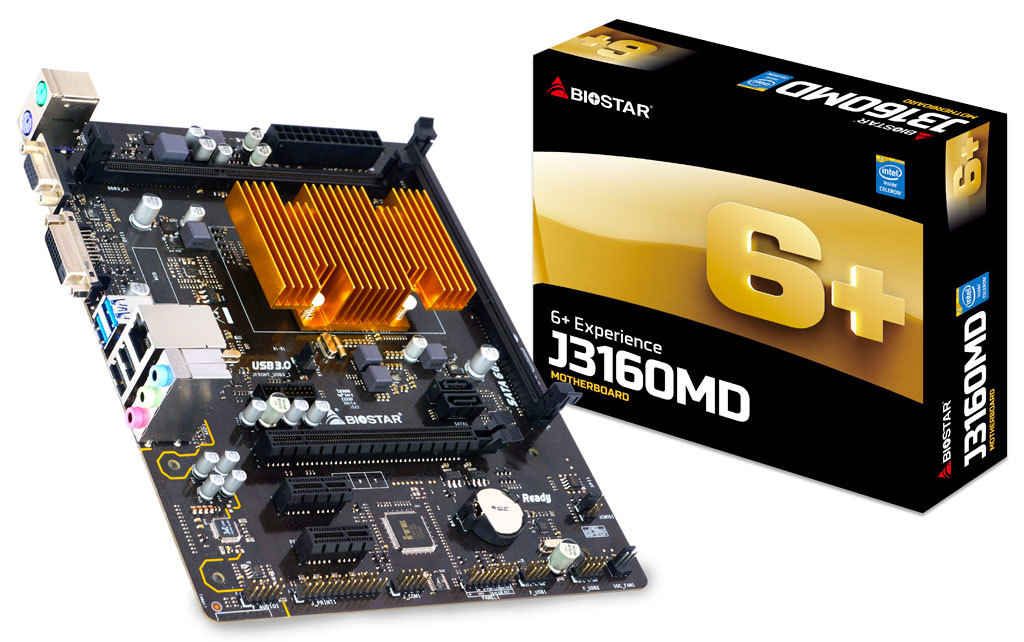

General Information
| Manufacturer | Biostar |
|---|---|
| Year | 2016 |
| Socket(s) |
1x
Onboard CPU
|
| Form Factor |
Micro-ATX
195 x 226 mm |
| Northbridge | None |
| Southbridge | None |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

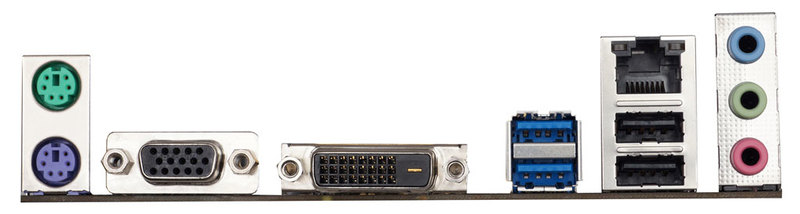

Back IO
Audio
- 3x Analog Audio Jack
Misc
- 2x PS/2
Network
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Video
- 1x DVI-D
- 1x VGA
Internal Connections
Fans
- 2x 3-pin Fan header
Misc
- 1x Parallel Header
- 1x Serial Header
Power
- 1x 24-pin ATX Power
Storage
- 2x SATA3
USB
- 2x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
| Onboard CPU | Intel Celeron J3160 |
| Onboard GPU | Intel HD Graphics 400 |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111H | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 2.0 x16 @ x1
- 2x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR3L |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 1600 MHz |
| Maximum Capacity | 16 GB |
| Maximum Channels | 2 |
| ECC support | No |
Reviews
| Reviewer | Review Language | Review Type | Review Date | |
|---|---|---|---|---|
| No reviews found | ||||
