General Information
| Manufacturer | Asrock |
|---|---|
| Year | 2010 |
| Socket(s) |
1x
AM3+
|
| Form Factor |
ATX
244 x 305 mm |
| Chipset | AMD 890GX |
| FSB | 2600 MHz |
| Product Series | Asrock Extreme |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

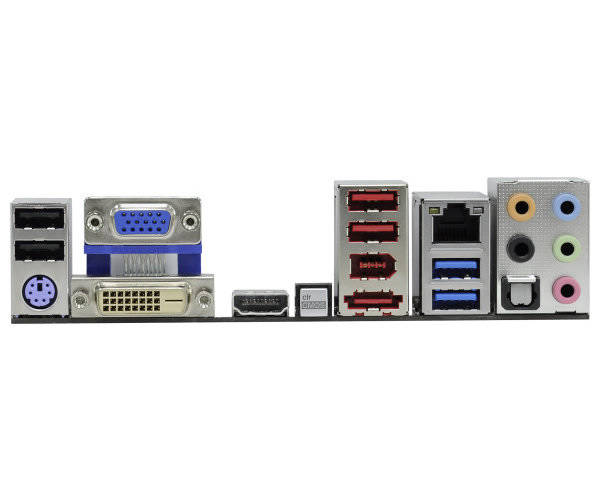

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
Network
- 1x RJ-45
Storage
- 1x FireWire 400 6-pin
- 1x eSATA2
USB
- 4x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Video
- 1x DVI-D
- 1x HDMI Out
- 1x VGA
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 3x 3-pin Fan header
- 2x 4-pin Fan Header
Misc
- 1x IR Header
- 1x Serial Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 1x FireWire 400 Header
- 6x SATA3
USB
- 4x USB 2 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
| Onboard GPU | AMD Radeon HD 4290 |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111E | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 2.0 x16 @ x16
- 1x PCI-E 2.0 x16 @ x8
- 1x PCI-E 2.0 x16 @ x4
- 1x PCI-E 2.0 x1 @ x1
- 3x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | No |
Audio
| Audiochip | VIA VT2020 |
|---|---|
| Audio Channels | 10 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 2000 MHz |
| Maximum Capacity | 16 GB |
| Maximum Channels | 2 |
| ECC support | No |
