General Information
| Manufacturer | ECS |
|---|---|
| Year | 2016 |
| Socket(s) |
1x
LGA 1151
|
| Form Factor |
Thin Mini-ITX
170 x 170 mm |
| Chipset | Intel H110 |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

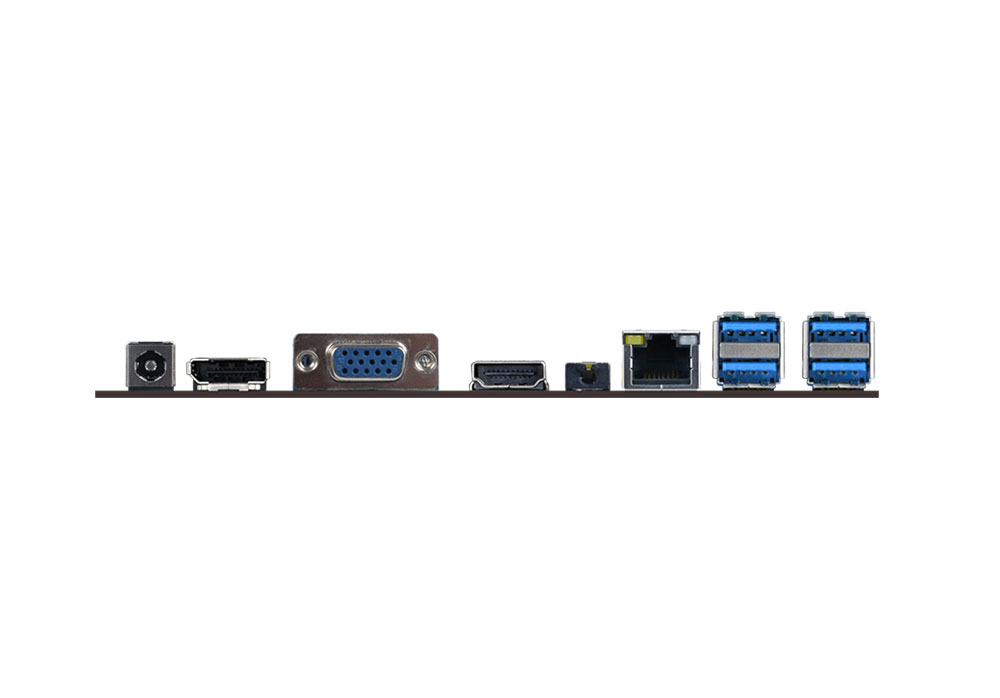

Back IO
Audio
- 3x Analog Audio Jack
Misc
- 1x Serial Port
Network
- 1x RJ-45
Power
- 1x DC Power Jack
USB
- 4x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 2 Type-A
Video
- 1x DisplayPort
- 1x HDMI Out
- 1x VGA
Internal Connections
Fans
- 1x 4-pin Fan Header
Misc
- 1x Serial Header
Storage
- 1x SATA3
Misc. Information
| PCB Color | Brown |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111H | 1000 Mbit | No |
Expansion Slots
Slots
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR3L |
|---|---|
| Slot Type | 204-pin SO-DIMM |
| Maximum Speed | 1600 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2280, | SATA3, |
| 1x | E-Key | 2230, | For Wifi Module Only |
