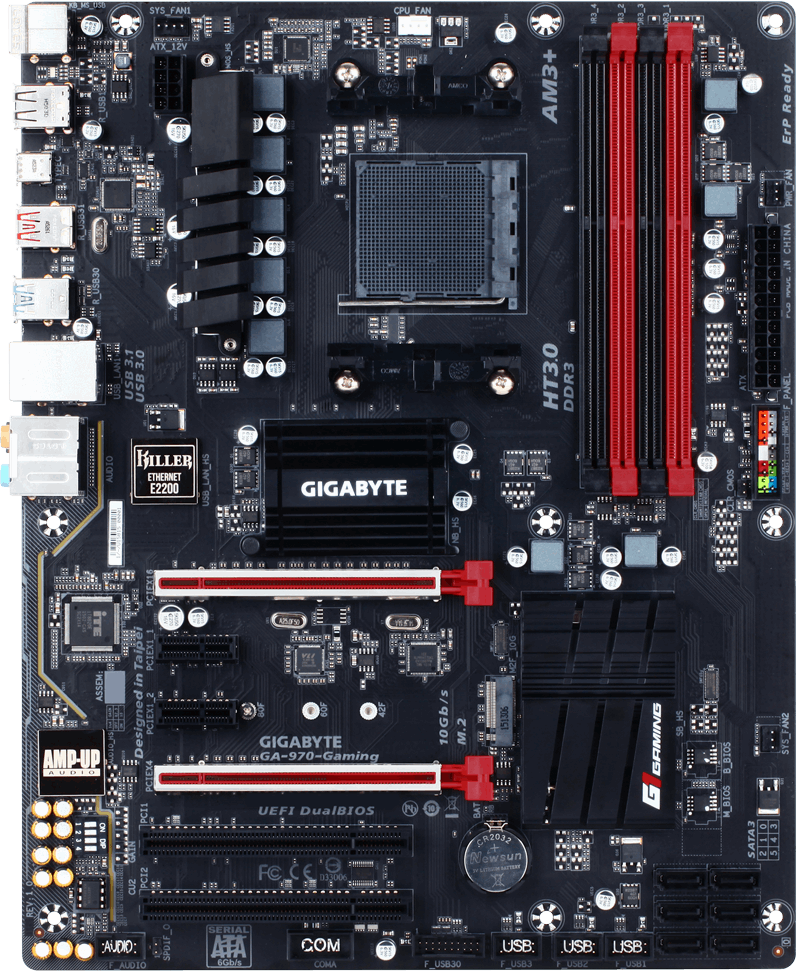

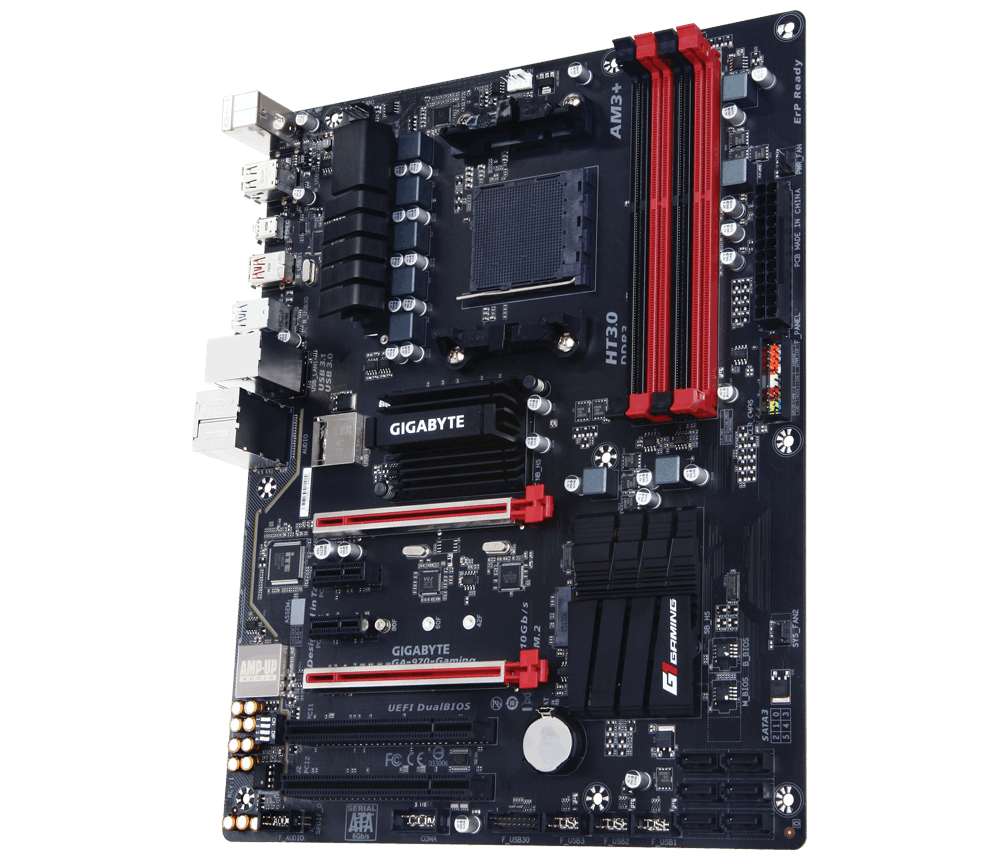

General Information
| Manufacturer | Gigabyte |
|---|---|
| Year | 2015 |
| Socket(s) |
1x
AM3+
|
| Form Factor |
ATX
244 x 305 mm |
| Chipset | AMD 970 |
| Product Series | Gigabyte G1 Gaming |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

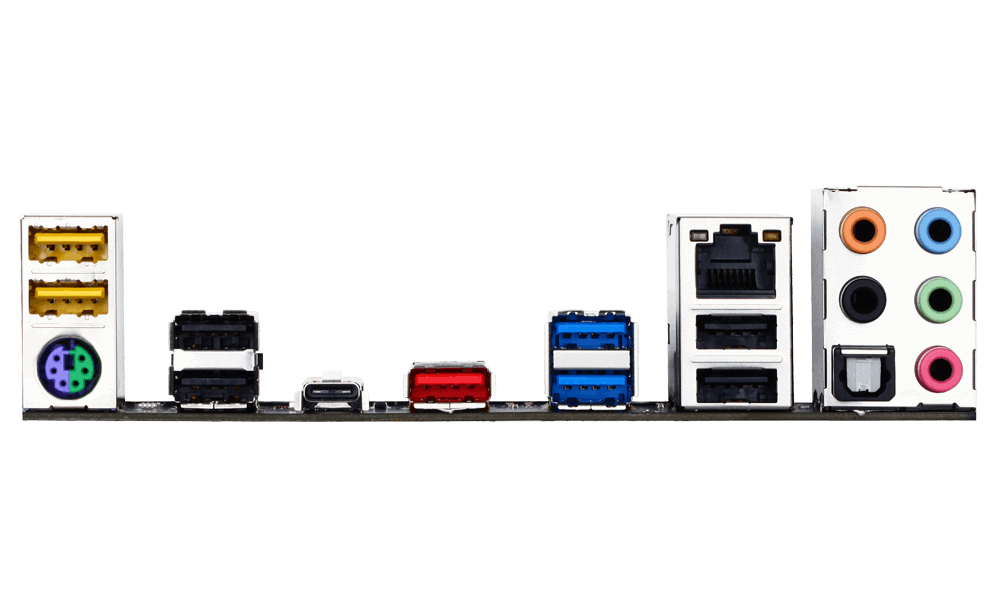

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
Network
- 1x RJ-45
USB
- 6x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 2 Type-A
- 1x USB 3 Gen 2 Type-C
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 2x 3-pin Fan header
- 2x 4-pin Fan Header
Misc
- 1x Serial Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 6x SATA3
USB
- 3x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Killer E2201 | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 2.0 x16 @ x16
- 1x PCI-E 2.0 x16 @ x4
- 2x PCI-E 2.0 x1 @ x1
- 2x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 2000 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2260, 2280, | PCI-E 2.0 x2, SATA3, |
Reviews
| Reviewer | Review Language | Review Type | Review Date | |
|---|---|---|---|---|
| No reviews found | ||||
Revisions This board has other revisions:
Gigabyte GA-970-Gaming Rev. 1.1
