General Information
Manufacturer Gigabyte
Year 2016
Socket(s) 1x AM3+
Form Factor ATX
244 x 305 mm
Chipset AMD 970
Product Series Gigabyte G1 Gaming
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

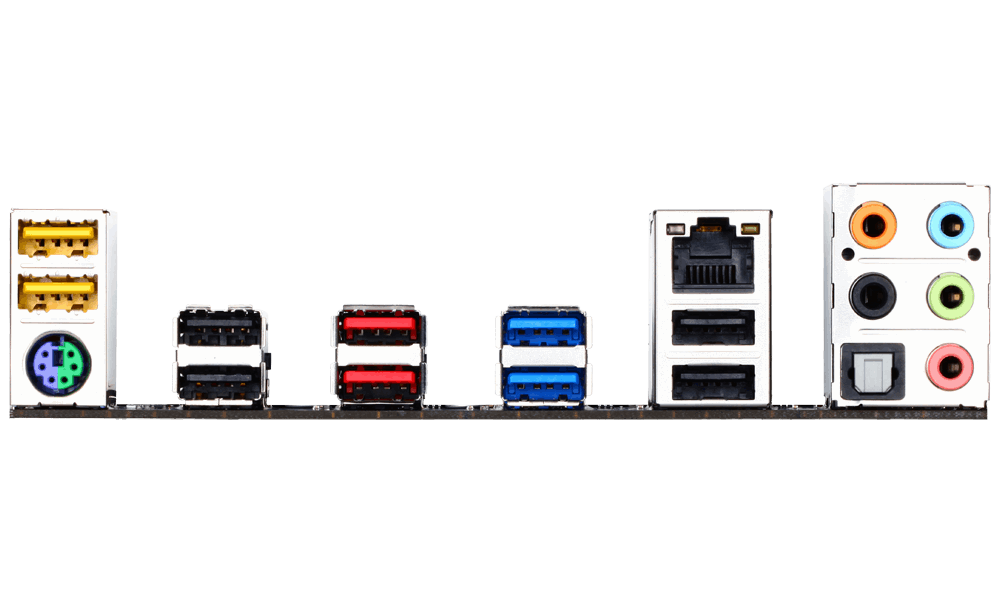

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 1x RJ-45
USB

  • 6x USB 2 Type-A
  • 2x USB 3 Gen 1 Type-A
  • 2x USB 3 Gen 2 Type-A

Internal Connections
Audio

  • 1x SPDIF Out Header
Fans

  • 2x 3-pin Fan header
  • 2x 4-pin Fan Header
Misc

  • 1x Serial Header
  • 1x TPM Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 6x SATA3
USB

  • 3x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Red

Network
Wired
Amount Chip Speed For IPMI
1x Intel [Unknown] 1000 Mbit No

Expansion Slots
Slots

  • 1x PCI-E 2.0 x16 @ x16
  • 1x PCI-E 2.0 x16 @ x8
  • 2x PCI-E 2.0 x1 @ x1
  • 2x PCI 5V @ 32-bit
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI No

Audio
Audiochip Realtek ALC1150
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 2000 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 2.0 x4, SATA3,
