General Information
| Manufacturer | Asrock |
|---|---|
| Year | 2018 |
| Socket(s) |
1x
LGA 1151
|
| Form Factor |
Mini-STX
147 x 140 mm |
| Chipset | Intel H310 |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

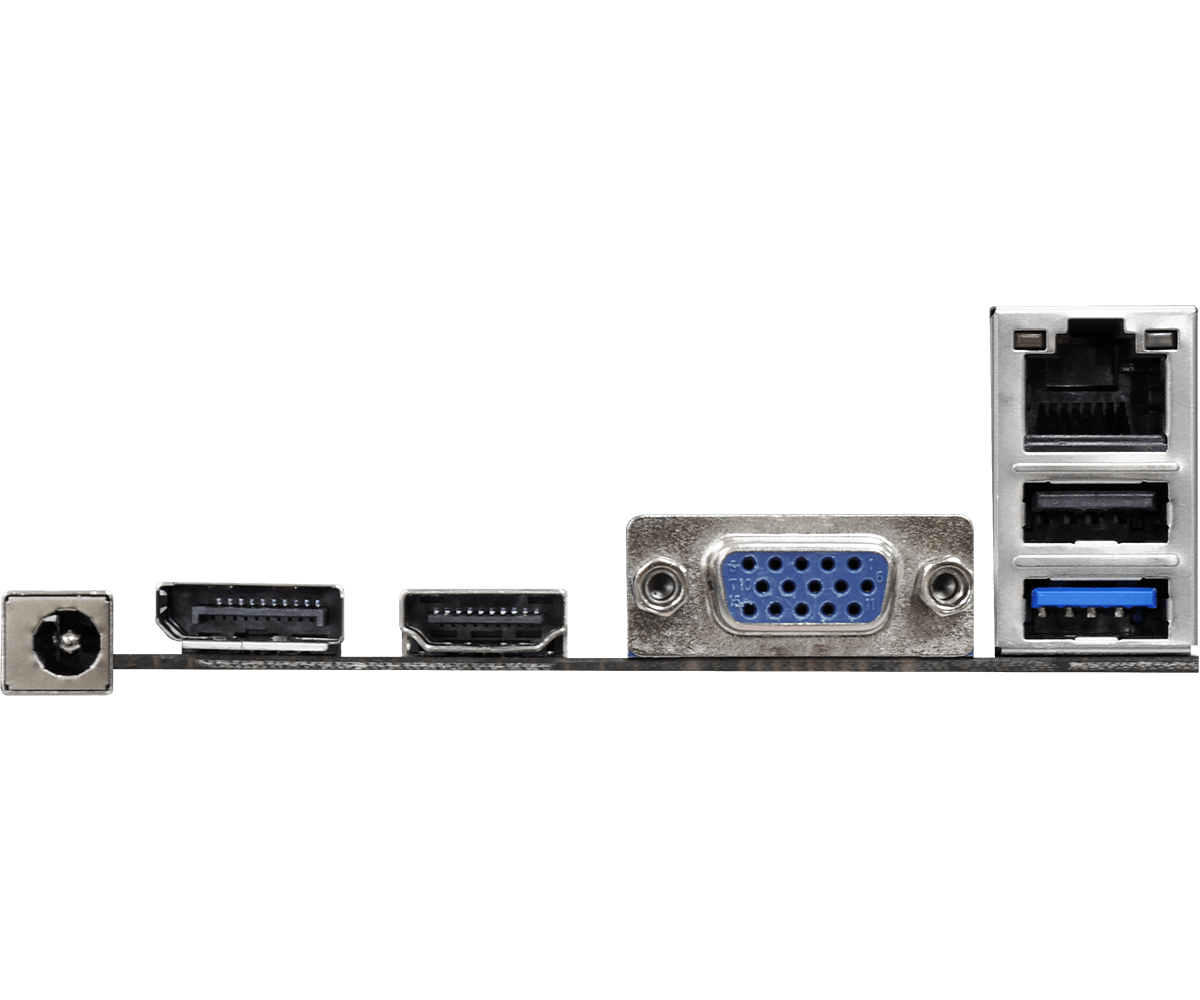

Back IO
Audio
- 2x Analog Audio Jack
Network
- 1x RJ-45
Power
- 1x DC Power Jack
USB
- 1x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 1 Type-C
Video
- 1x DisplayPort
- 1x HDMI Out
- 1x VGA
Internal Connections
Fans
- 2x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x Serial Header
Storage
- 1x Micro-SD Slot
- 2x SATA3
USB
- 1x USB 2 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I219-V | 1000 Mbit | No |
Expansion Slots
Slots
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC233 |
|---|---|
| Audio Channels | 2 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 260-pin SO-DIMM |
| Maximum Speed | 2666 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2280, | PCI-E 3.0 x4, SATA3, |
| 1x | E-Key | 2230, | For Wifi Module Only |
