General Information
Manufacturer Asus
Year 2019
Socket(s) 1x AM4
Form Factor ATX
244 x 305 mm
Chipset AMD X570
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

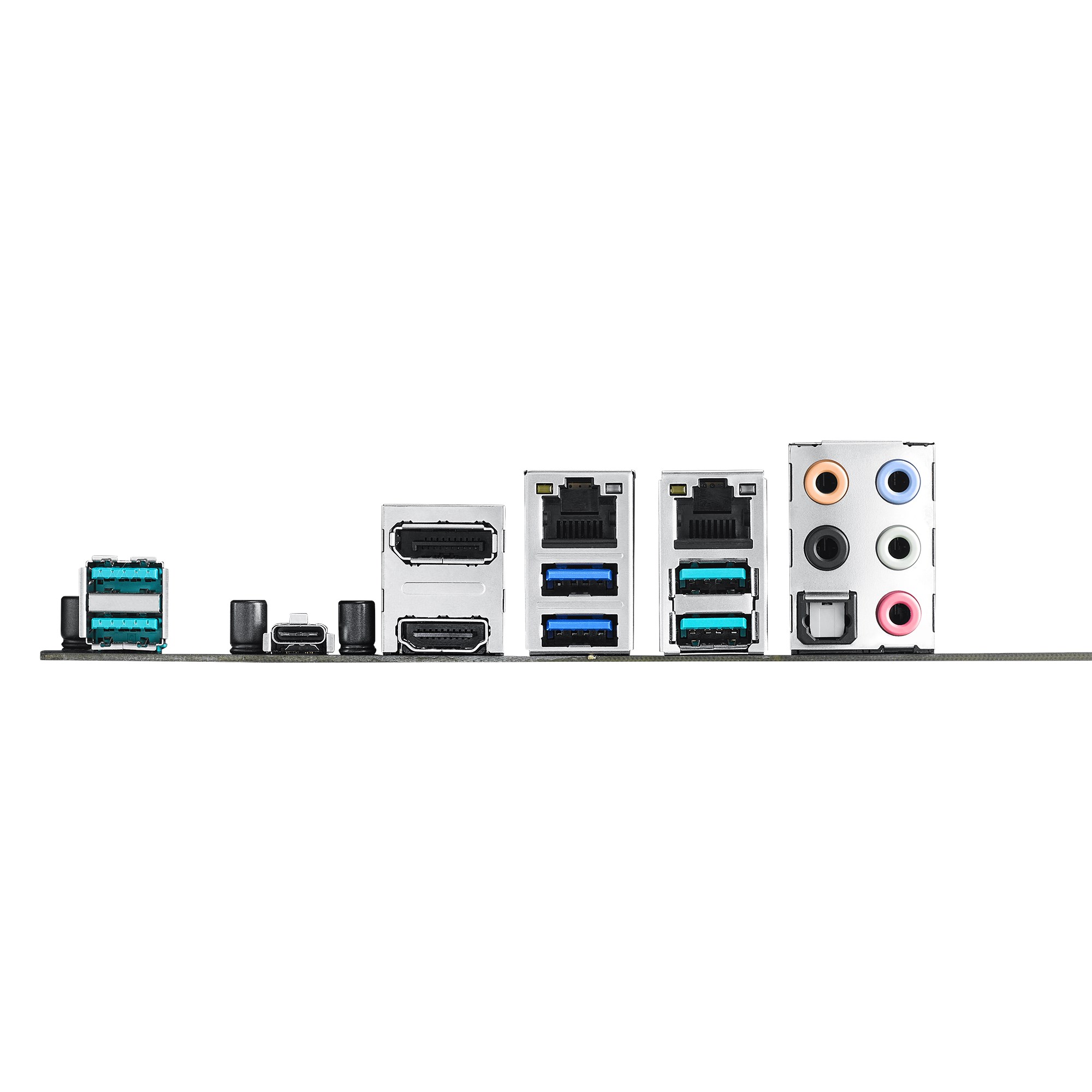

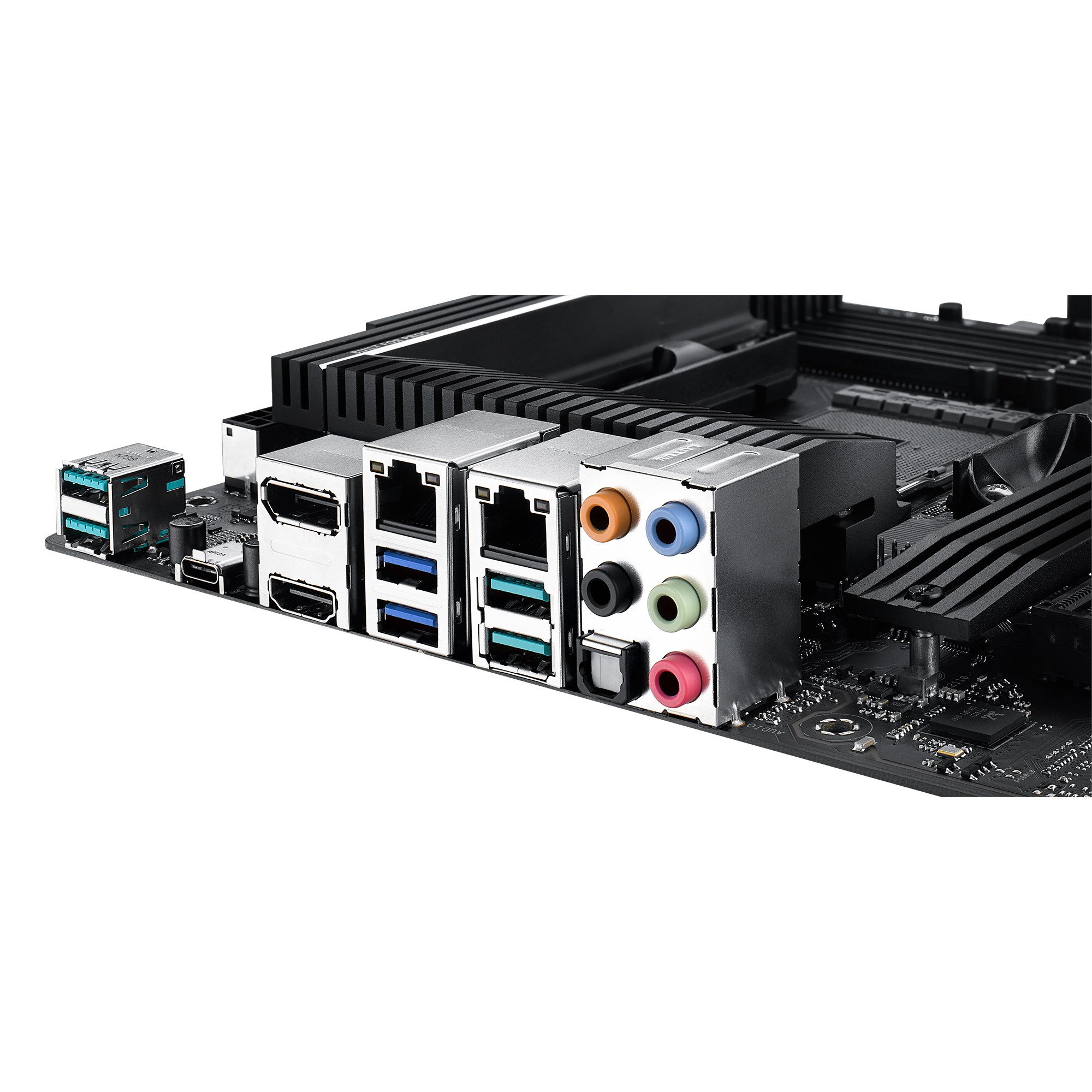

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

  • 2x RJ-45
USB

  • 2x USB 3 Gen 1 Type-A
  • 4x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C
Video

  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections
Audio

  • 1x SPDIF Out Header
Fans

  • 6x 4-pin Fan Header
Misc

  • 1x Serial Header
  • 1x TPM Header
Power

  • 1x 24-pin ATX Power
  • 1x 4-pin 12V Power
  • 1x 8-pin 12V Power
Storage

  • 4x SATA3
  • 1x U.2
USB

  • 2x USB 2 Header
  • 2x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black

Network
Wired
Amount Chip Speed For IPMI
1x Realtek RTL8117 1000 Mbit No
1x Intel I211-AT 1000 Mbit No

Expansion Slots
Slots

  • 1x PCI-E 4.0 x16 @ x16
  • 2x PCI-E 4.0 x16 @ x8
  • 2x PCI-E 4.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1200
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 3200 MHz
Maximum Capacity 128 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2242, 2260, 2280, PCI-E 4.0 x4, SATA3,
1x M-Key 2242, 2260, 2280, PCI-E 4.0 x2,
