General Information
Manufacturer Asrock
Year 2014
Socket(s) 1x LGA 1150
Form Factor ATX
Chipset Intel H97
Product Series Asrock Pro
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

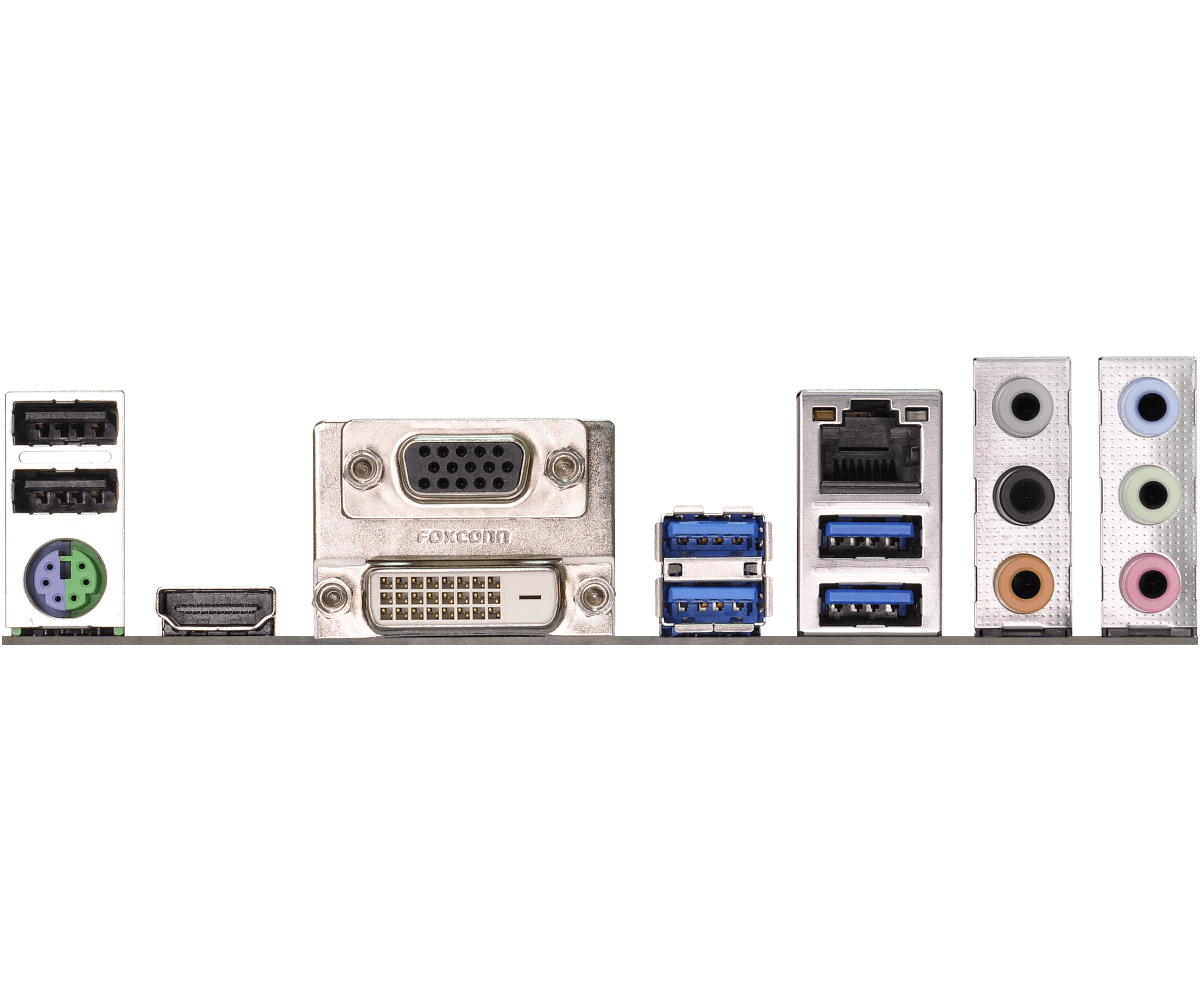

Back IO
Audio
  • 6x Analog Audio Jack
Misc
  • 1x PS/2
Network
  • 1x RJ-45
USB
  • 2x USB 2 Type-A
  • 4x USB 3 Gen 1 Type-A
Video
  • 1x DVI-D
  • 1x HDMI Out
  • 1x VGA

Internal Connections
Fans
  • 2x 3-pin Fan header
  • 3x 4-pin Fan Header
Misc
  • 1x Serial Header
  • 1x TPM Header
Power
  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
  • 1x Molex Power
Storage
  • 6x SATA3
USB
  • 2x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Blue

Network
Wired
Amount Chip Speed For IPMI
1x Intel I218-V 1000 Mbit No

Expansion Slots
Slots
  • 1x PCI-E 3.0 x16 @ x16
  • 3x PCI-E 2.0 x1 @ x1
  • 2x PCI 5V @ 32-bit
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip Realtek ALC892
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 1600 MHz
Maximum Capacity 32 GB
Maximum Channels 2
ECC support No
