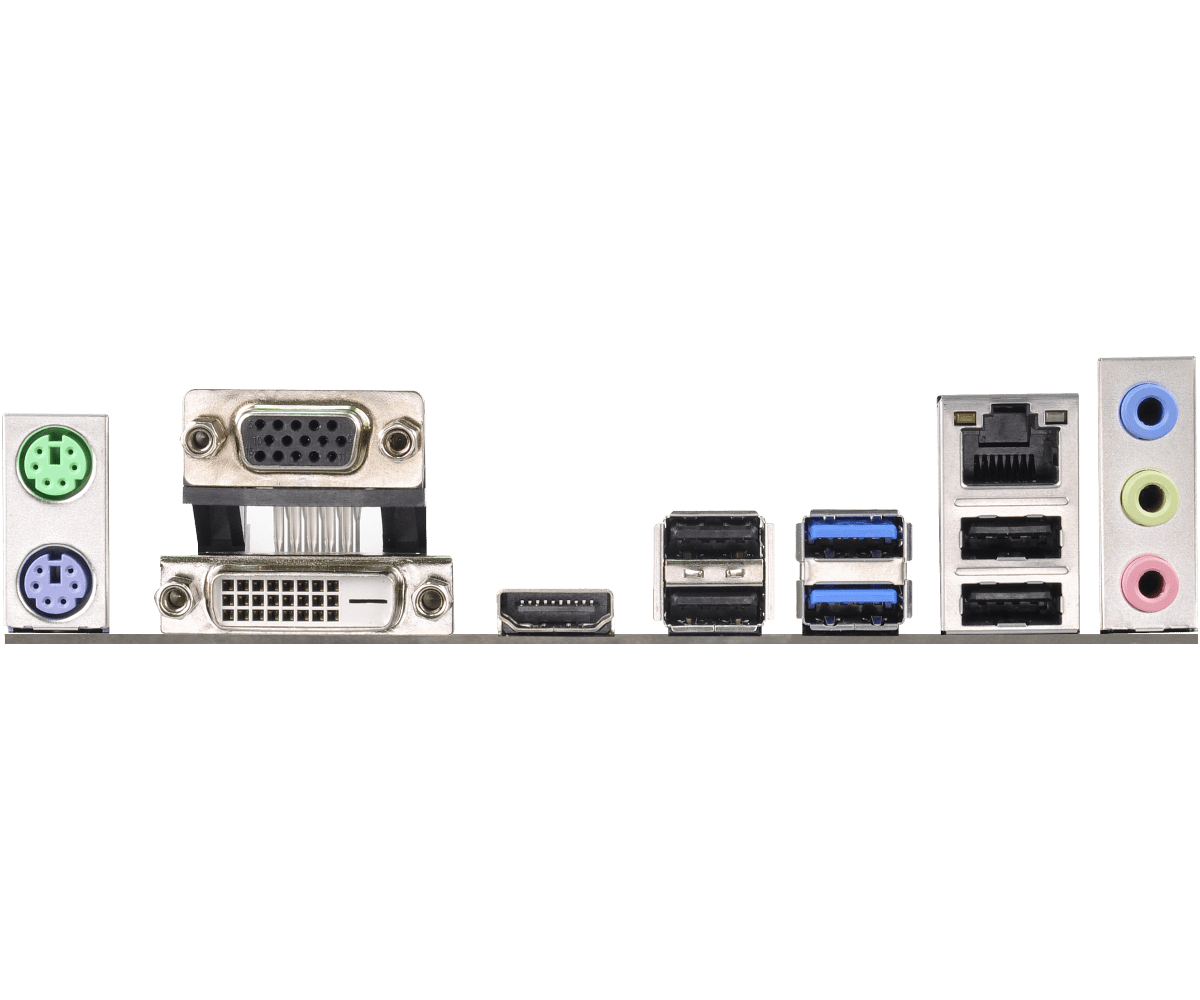

Back IO
Audio
- 3x Analog Audio Jack
Misc
- 2x PS/2
Network
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 4x USB 3 Gen 1 Type-A
Video
- 1x DVI-D
- 1x HDMI Out
- 1x VGA
Internal Connections
Fans
- 2x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 4-pin 12V Power
Storage
- 6x SATA3
USB
- 2x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Realtek RTL8111GR | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
- 2x PCI-E 2.0 x1 @ x1
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 1600 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | No |
