General Information
Manufacturer MSI
Year 2014
Socket(s) 1x LGA 1150
Form Factor ATX
244 x 305 mm
Chipset Intel Z97
Market Consumer
MSRP US $?
Comparison feature is in beta and not finished!

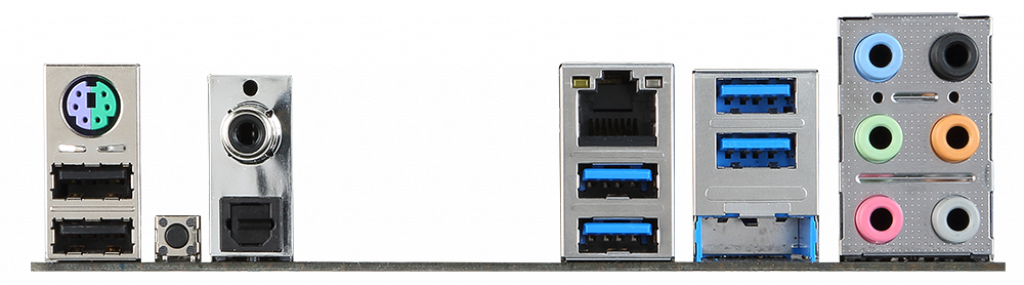

Back IO
Audio

  • 1x 6.3mm Headphone Jack
  • 6x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 1x RJ-45
USB

  • 2x USB 2.0 Type-A
  • 4x USB 3.0 Type-A

Internal Connections
Fans

  • 5x 4-pin Fan Header
Misc

  • 1x Chassis Intrusion Header
  • 1x Serial Header
  • 1x TPM Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 6x SATA3
USB

  • 3x USB 2.0 Header
  • 1x USB 3.0 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Red

Network
Wired
Amount Chip Speed For IPMI
1x Realtek RTL8111G 1000 Mbit No

Expansion Slots
Slots

  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x8
  • 1x PCI-E 3.0 x16 @ x4
  • 4x PCI-E 2.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC892
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 3300 MHz
Maximum Capacity 32 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 2.0 x2, SATA3,
