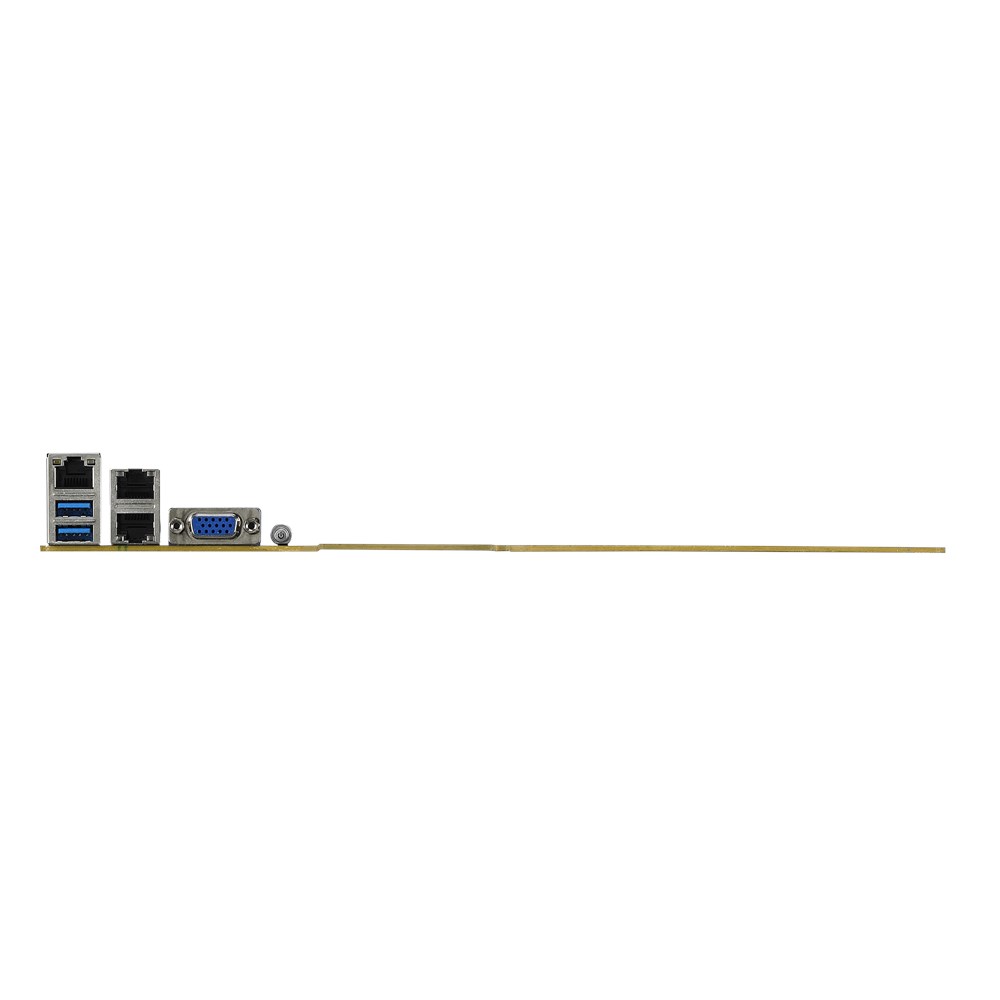

Back IO
Network
- 3x RJ-45
USB
- 2x USB 3 Gen 1 Type-A
Video
- 1x VGA
Internal Connections
Fans
- 9x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x SMBus Header
- 1x Serial Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 1x Micro-SD Slot
- 1x Mini-SAS HD
- 4x SATA3
USB
- 1x USB 3 Gen 1 Header
- 1x USB 3 Gen 1 Type-A
Video
- 1x VGA Header
Misc. Information
PCB Color | Black |
---|---|
Other Colors |
|
Onboard GPU | Aspeed AST2500 |
Network
Wired
Amount | Chip | Speed | For IPMI |
---|---|---|---|
1x | Intel I350-AM2 | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x24 @ x16
- 2x PCI-E 3.0 x16 @ x16
- 3x PCI-E 3.0 x8 @ x8
Crossfire & SLI
AMD Crossfire | No |
Nvidia SLI | No |
Audio
Audiochip | This board has no onboard audio |
---|---|
Audio Channels |
Memory
This board has 16 slots with the following specifications:
Slot Protocol | DDR4 |
---|---|
Slot Type | 288-pin DIMM |
Maximum Speed | 2666 MHz |
Maximum Capacity | 2 TB |
Maximum Channels | 8 |
ECC support | No |
M.2 Slots
M.2 Connections
Amount | Slot | Sizes | Speeds |
---|---|---|---|
1x | M-Key | 22110, 2242, 2260, 2280, | PCI-E 3.0 x4, SATA3, |
