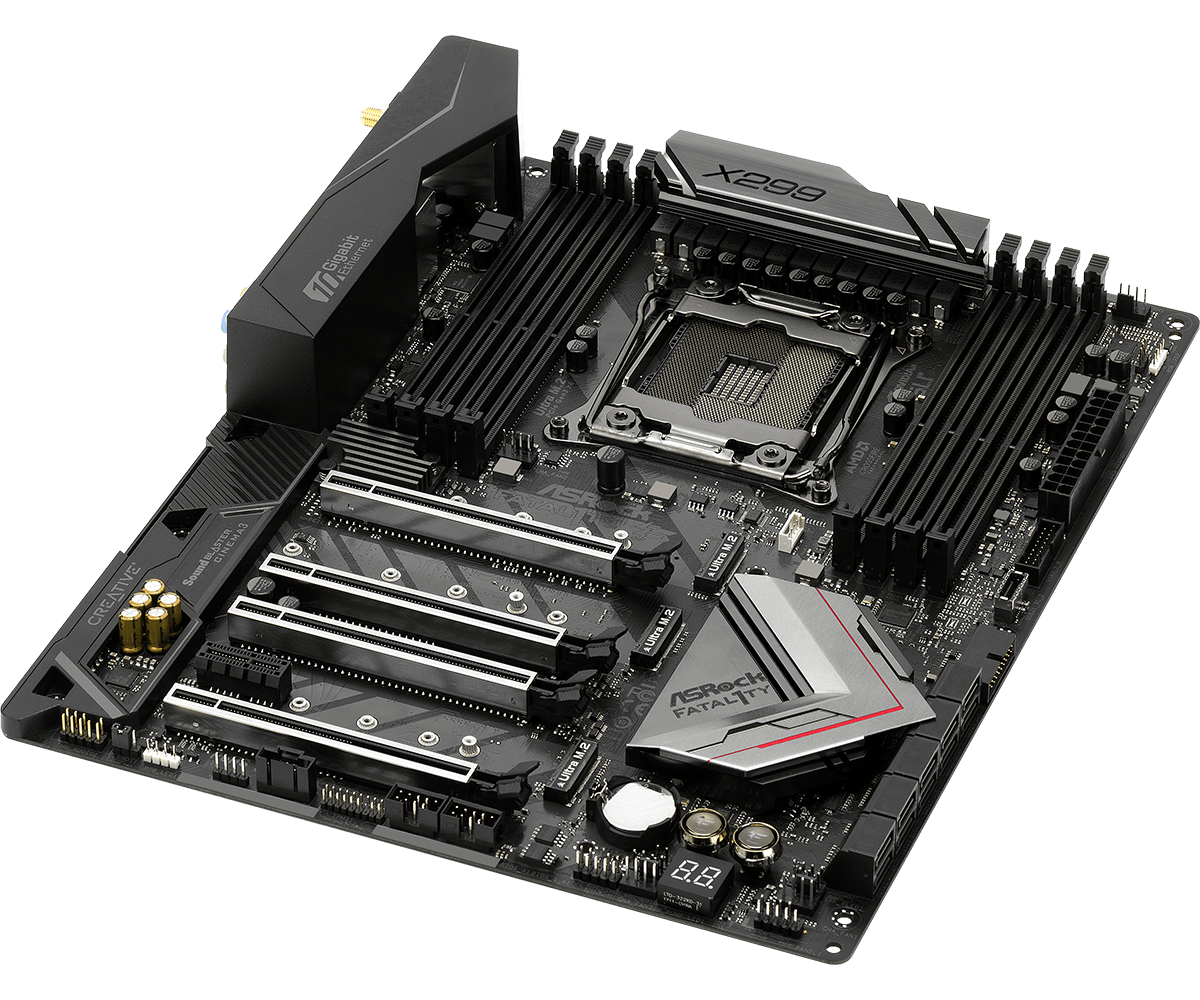

General Information
Manufacturer Asrock
Year 2017
Socket(s) 1x LGA 2066
Form Factor ATX
244 x 305 mm
Chipset Intel X299
Product Series Asrock Fatal1ty
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc

  • 1x PS/2
Network

  • 2x Antenna Port
  • 3x RJ-45
USB

  • 2x USB 2.0 Type-A
  • 4x USB 3.0 Type-A
  • 1x USB 3.1 Gen-2 Type-A
  • 1x USB 3.1 Gen-2 Type-C

Internal Connections
Fans

  • 5x 4-pin Fan Header
Misc

  • 2x RGB Header
  • 1x TPM Header
  • 1x Thunderbolt 5-pin Header
  • 1x VROC Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 10x SATA3
USB

  • 2x USB 2.0 Header
  • 2x USB 3.0 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Aquantia AQC107 10000 Mbit No
1x Intel I219-V 1000 Mbit No
1x Intel I211-AT 1000 Mbit No

Wireless

Bluetooth Version 4.2
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 2x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 2.0 x1 @ x1
  • 2x PCI-E 3.0 x16 @ x8
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1
Headphone Amplifer Texas Instruments NE5532

Memory

This board has 8 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4400 MHz
Maximum Capacity 128 GB
Maximum Channels 4
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2230, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
2x M-Key 2230, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x E-Key 2230, For Wifi Module Only

Reviews
Reviewer Review Language Review Type Review Date
TweakTown English Video Aug. 1, 2017 View Review
Tom's Hardware English Written Sept. 5, 2017 View Review
TechPowerUp English Written Sept. 5, 2017 View Review
