General Information
| Manufacturer | Asrock |
|---|---|
| Year | 2017 |
| Socket(s) |
1x
LGA 2066
|
| Form Factor |
ATX
244 x 305 mm |
| Chipset | Intel X299 |
| Product Series | Asrock Fatal1ty |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

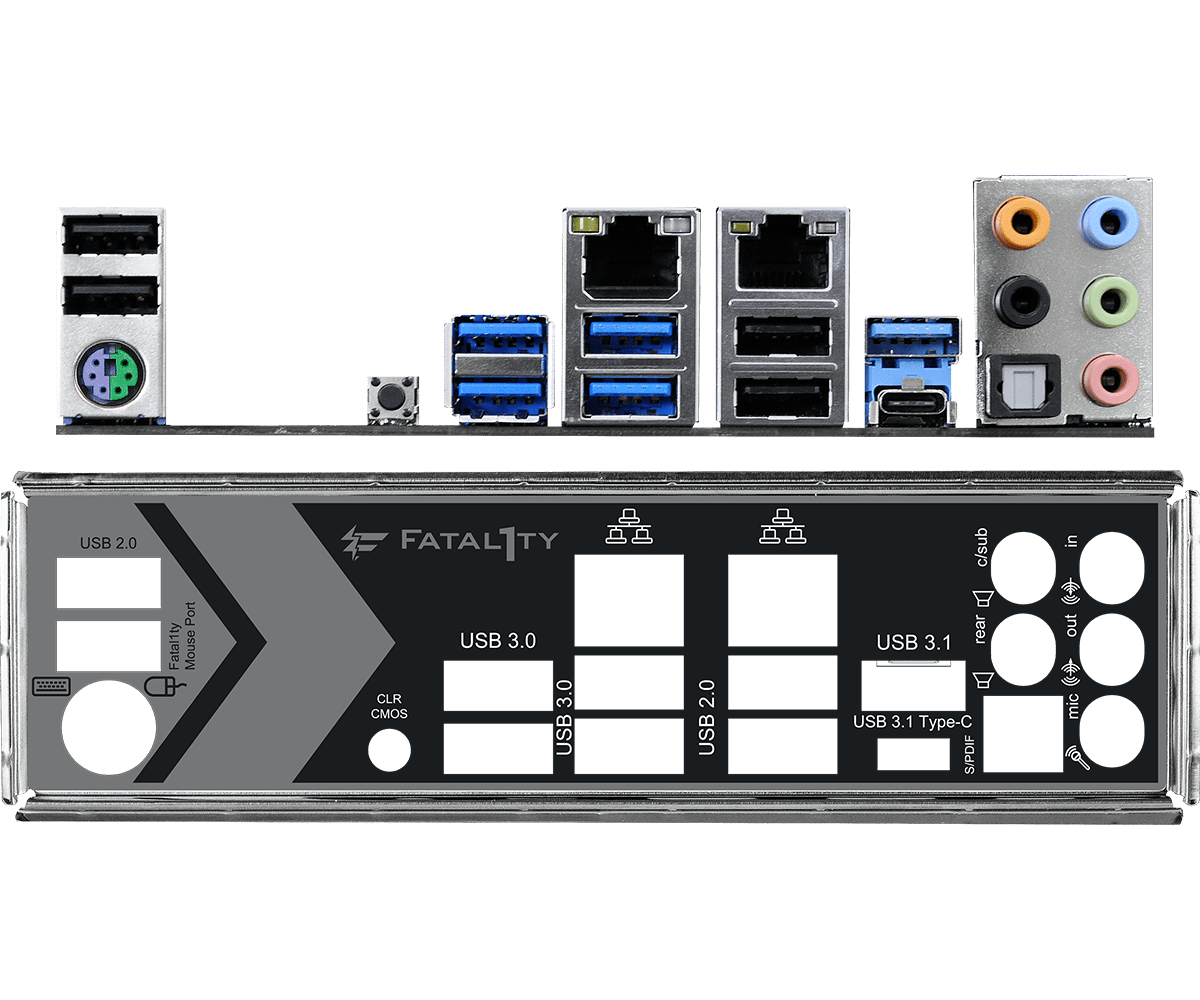

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
Network
- 2x RJ-45
USB
- 4x USB 2 Type-A
- 4x USB 3 Gen 1 Type-A
- 1x USB 3 Gen 2 Type-A
- 1x USB 3 Gen 2 Type-C
Internal Connections
Fans
- 5x 4-pin Fan Header
Misc
- 2x RGB Header
- 1x TPM Header
- 1x Thunderbolt 5-pin Header
- 1x VROC Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 8x SATA3
USB
- 3x USB 2 Header
- 2x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
| LED Color | RGB |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I219-V | 1000 Mbit | No |
| 1x | Intel I211-AT | 1000 Mbit | No |
Expansion Slots
Slots
- 2x PCI-E 3.0 x16 @ x16
- 1x PCI-E 3.0 x1 @ x1
- 2x PCI-E 3.0 x16 @ x8
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
Audio
| Audiochip | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 |
| Headphone Amplifer | Texas Instruments NE5532 |
Memory
This board has 8 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 4400 MHz |
| Maximum Capacity | 128 GB |
| Maximum Channels | 4 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 22110, 2230, 2242, 2260, 2280, | PCI-E 3.0 x4, SATA3, |
| 2x | M-Key | 2230, 2242, 2260, 2280, | PCI-E 3.0 x4, SATA3, |
