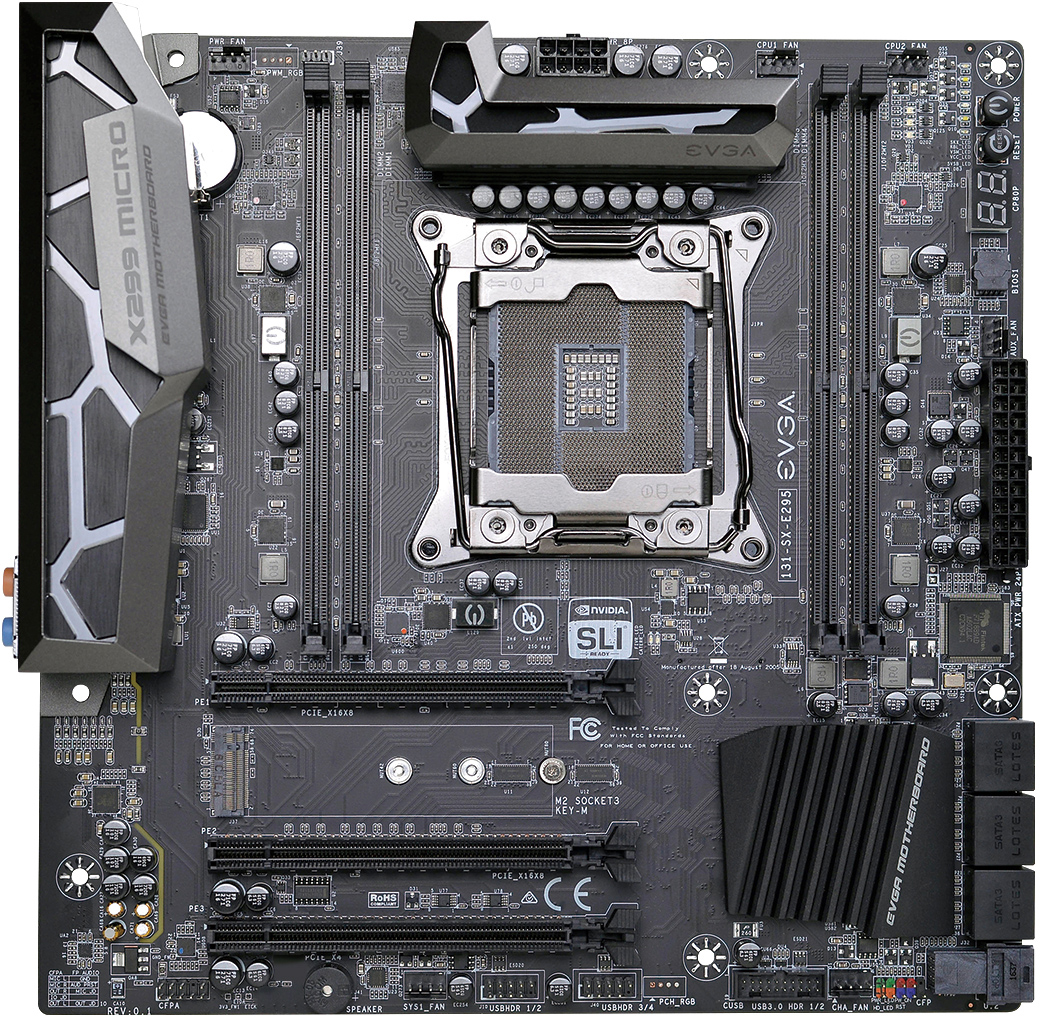

General Information
Manufacturer EVGA
Year 2017
Socket(s) 1x LGA 2066
Form Factor Micro-ATX
244 x 244 mm
Chipset Intel X299
Market Consumer
MSRP US $269.99
Manual Download Manual
Product Page Go to website
Comparison feature is in beta and not finished!

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

  • 2x Antenna Port
  • 1x RJ-45
USB

  • 6x USB 3.0 Type-A
  • 1x USB 3.1 Gen-2 Type-A
  • 1x USB 3.1 Gen-2 Type-C

Internal Connections
Fans

  • 6x 4-pin Fan Header
Misc

  • 1x RGB Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 6x SATA3
  • 1x U.2
USB

  • 2x USB 2.0 Header
  • 1x USB 3.0 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Intel I219-V 1000 Mbit No

Wireless

Bluetooth Version None
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 2x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x4
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1150
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4133 MHz
Maximum Capacity 64 GB
Maximum Channels 4
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2260, 2280, PCI-E 3.0 x4, SATA3,
1x E-Key 2230, For Wifi Module Only
