General Information
Manufacturer Gigabyte
Year 2017
Socket(s) 1x LGA 1151
Form Factor ATX
244 x 305 mm
Chipset Intel Z370
Product Series Gigabyte Aorus
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

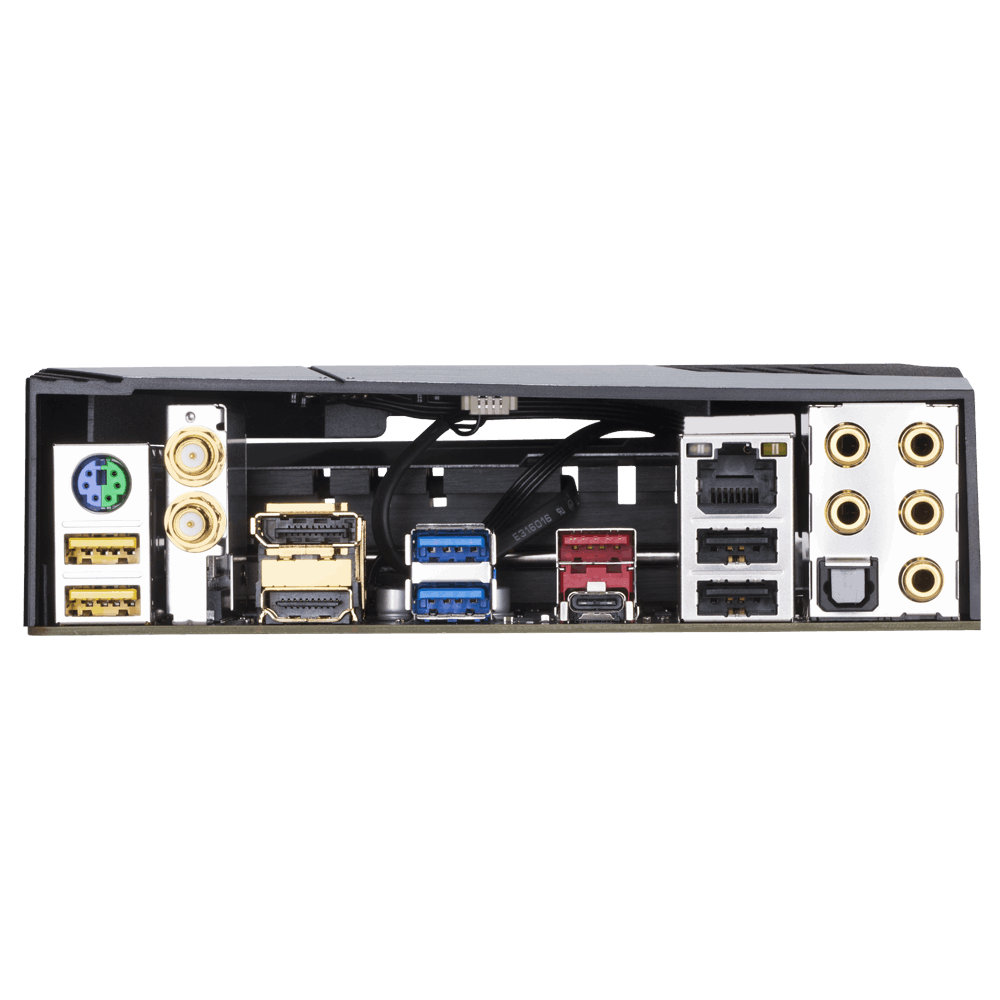

Back IO
Audio
  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc
  • 1x PS/2
Network
  • 2x Antenna Port
  • 1x RJ-45
USB
  • 2x USB 2 Type-A
  • 4x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C
Video
  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections
Audio
  • 1x SPDIF Out Header
  • 1x SPDIF Out Header
Fans
  • 8x 4-pin Fan Header
Misc
  • 2x Digital LED Strip Header
  • 2x RGB Header
  • 1x TPM Header
  • 1x Thunderbolt 5-pin Header
Power
  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage
  • 6x SATA3
USB
  • 2x USB 2 Header
  • 1x USB 3 Gen 1 Header
  • 1x USB 3 Gen 2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
  • Silver
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Intel [Unknown] 1000 Mbit No

Wireless
Bluetooth Version 4.2
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots
  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x8
  • 1x PCI-E 3.0 x16 @ x4
  • 3x PCI-E 3.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1
Headphone Amplifer Texas Instruments NE5532

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4133 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
2x M-Key 22110, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x E-Key 2230, For Wifi Module Only

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
