General Information
| Manufacturer | Asrock |
|---|---|
| Year | 2014 |
| Socket(s) |
1x
LGA 1150
|
| Form Factor | Mini-ITX |
| Chipset | Intel Z97 |
| Market | Consumer |
| MSRP | US $? |
| Manual | Download Manual |
| Product Page | Go to website |

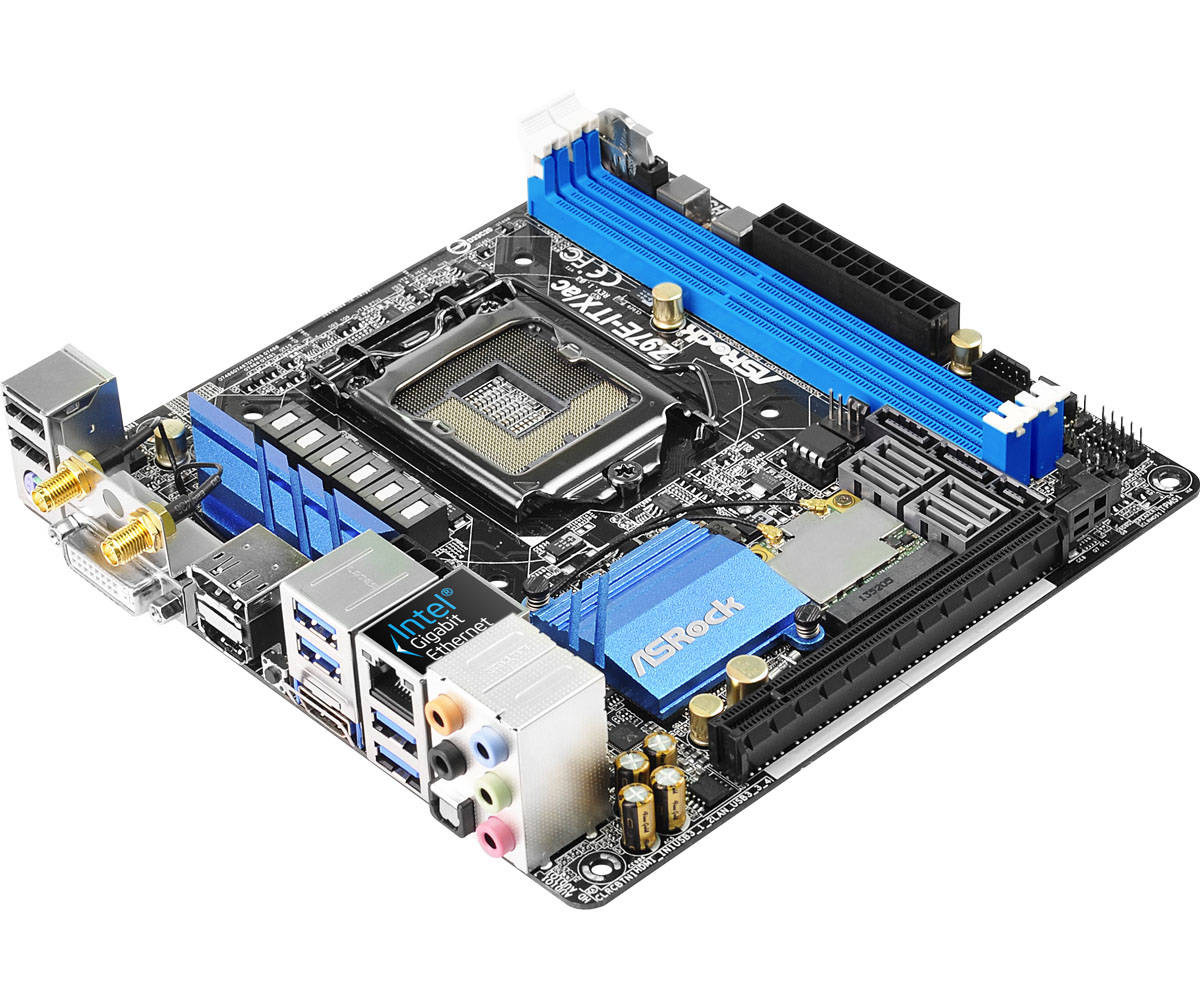

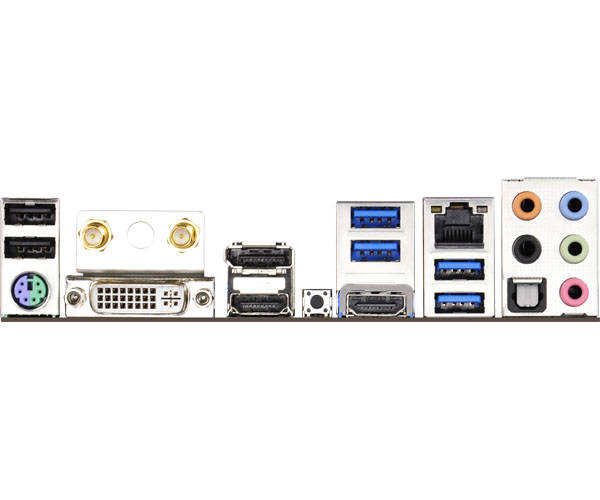

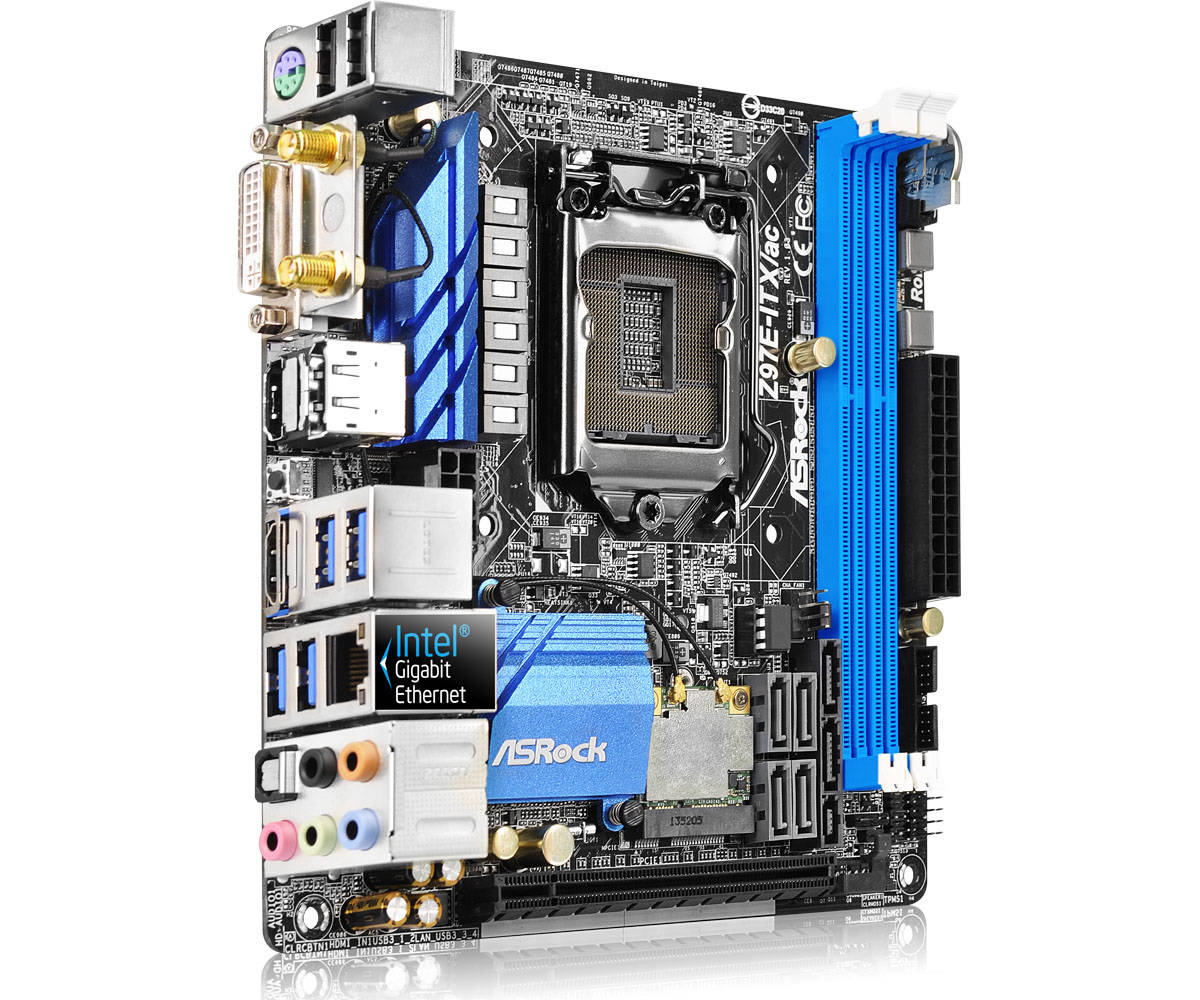

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Misc
- 1x PS/2
Network
- 2x Antenna Port
- 1x RJ-45
USB
- 2x USB 2 Type-A
- 4x USB 3 Gen 1 Type-A
Video
- 1x DVI-I
- 1x DisplayPort
- 1x HDMI In
- 1x HDMI Out

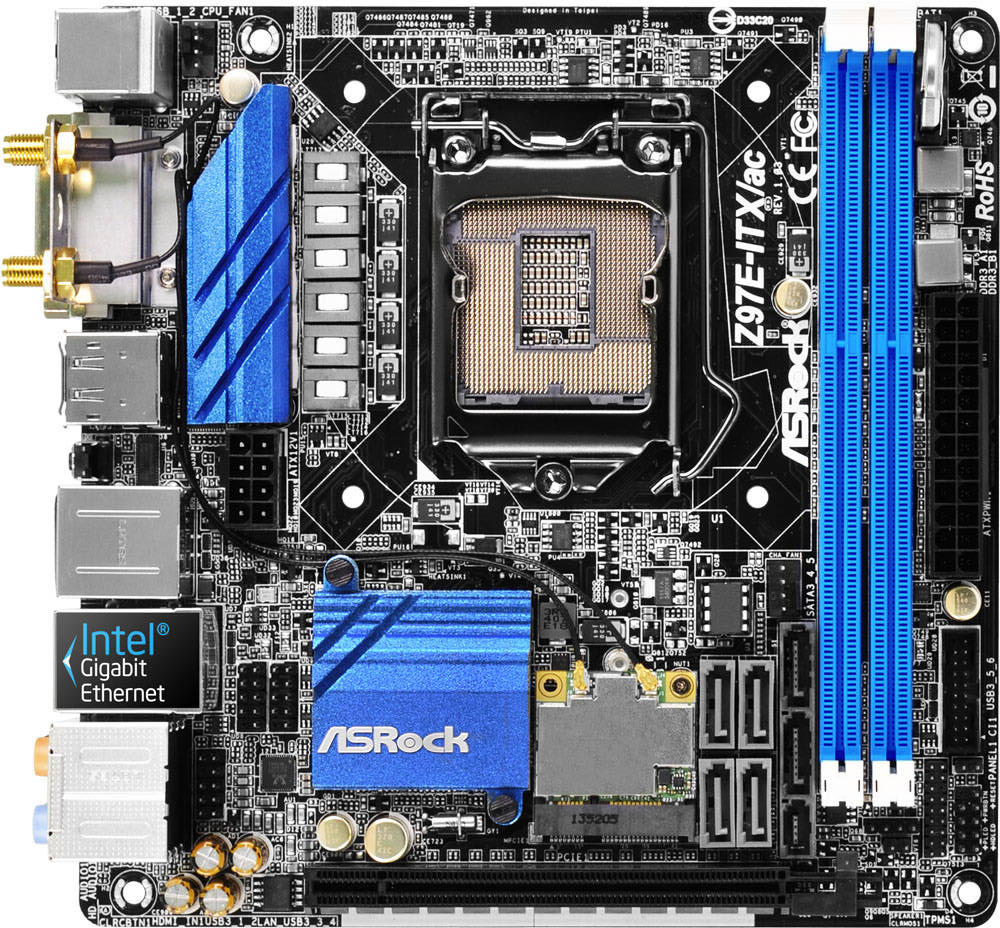

Internal Connections
Fans
- 2x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 1x SATA Express
- 6x SATA3
USB
- 2x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I218-V | 1000 Mbit | No |
Wireless
| Bluetooth Version | 4.0 |
|---|---|
| Wifi 5GHz Support | Yes |
| Wifi Protocol | 802.11 a/b/g/n/ac |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 |
| Headphone Amplifer | Texas Instruments NE5532 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 3200 MHz |
| Maximum Capacity | 16 GB |
| Maximum Channels | 2 |
| ECC support | No |
M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2230, 2242, | PCI-E 2.0 x2, SATA3, |
Reviews
| Reviewer | Review Language | Review Type | Review Date | |
|---|---|---|---|---|
| Play3r | English | Video | June 12, 2014 | View Review |
| eTeknix | English | Video | April 14, 2015 | View Review |
