General Information
| Manufacturer | Jetway |
|---|---|
| Year | 2016 |
| Socket(s) |
1x
LGA 1151
|
| Form Factor |
Thin Mini-ITX
170 x 170 mm |
| Chipset | Intel Q170 |
| Market | Industrial |
| MSRP | US $? |
| Manual | Download Manual |
| Product Page | Go to website |

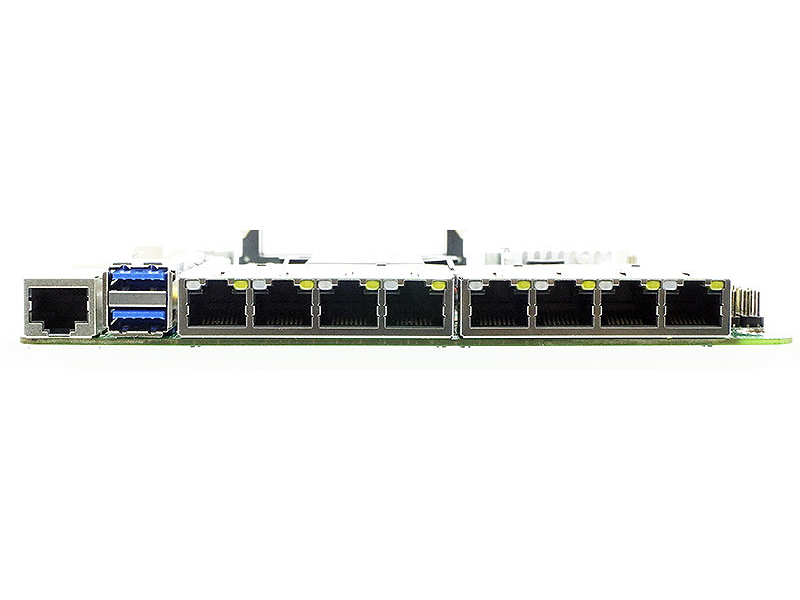

Back IO
Misc
- 1x RJ-45 Serial
Network
- 8x RJ-45
USB
- 2x USB 3 Gen 1 Type-A
Internal Connections
Fans
- 3x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x GPIO Header
- 1x PS/2 Header
Network
- 1x SIM Card Slot
Power
- 1x 24-pin ATX Power
- 1x 4-pin 12V Power
Storage
- 6x SATA3
USB
- 2x USB 2 Header
Video
- 1x HDMI Header
Misc. Information
| PCB Color | Green |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I219-LM | 1000 Mbit | No |
| 7x | Intel I211-AT | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 2.0 x4 @ x4
- 1x PCI-E 2.0 Mini PCI-E @ x1
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | This board has no onboard audio |
|---|---|
| Audio Channels |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR3L |
|---|---|
| Slot Type | 204-pin SO-DIMM |
| Maximum Speed | 1600 MHz |
| Maximum Capacity | 16 GB |
| Maximum Channels | 2 |
| ECC support | No |
