General Information
Manufacturer Asus
Year 2019
Socket(s) 1x LGA 1151
Form Factor Micro-ATX
185 x 226 mm
Chipset Intel B365
Product Series Asus Prime
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

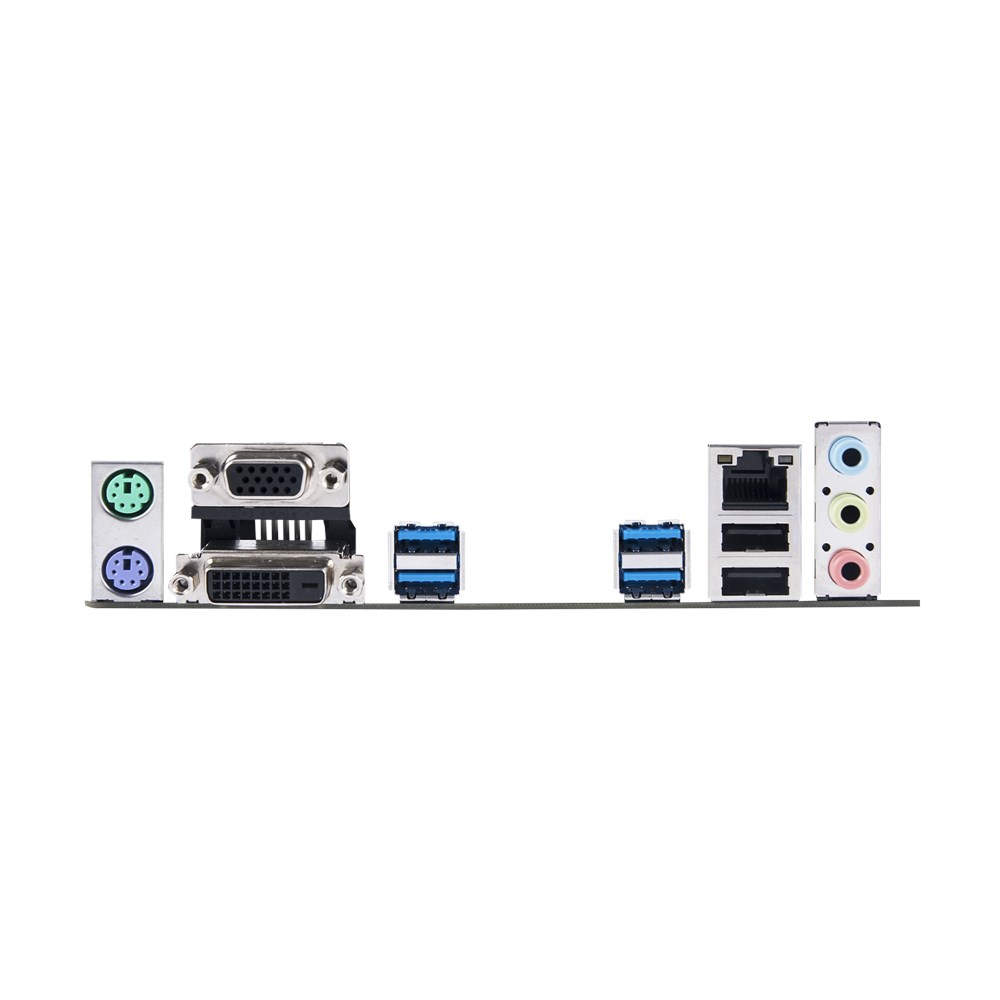

Back IO
Audio

  • 3x Analog Audio Jack
Misc

  • 2x PS/2
Network

  • 1x RJ-45
USB

  • 2x USB 2 Type-A
  • 4x USB 3 Gen 1 Type-A
Video

  • 1x DVI-D
  • 1x VGA

Internal Connections
Audio

  • 1x SPDIF Out Header
Fans

  • 2x 4-pin Fan Header
Misc

  • 1x Serial Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 6x SATA3
USB

  • 2x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
  • Silver

Network
Wired
Amount Chip Speed For IPMI
1x Realtek RTL8111H 1000 Mbit No

Expansion Slots
Slots

  • 1x PCI-E 3.0 x16 @ x16
  • 2x PCI-E 3.0 x1 @ x1
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip Realtek ALC887
Audio Channels 7.1

Memory

This board has 2 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2666 MHz
Maximum Capacity 32 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
