General Information
Manufacturer Asus
Year 2017
Socket(s) 1x TR4
Form Factor E-ATX
Chipset AMD X399
Product Series Asus ROG
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

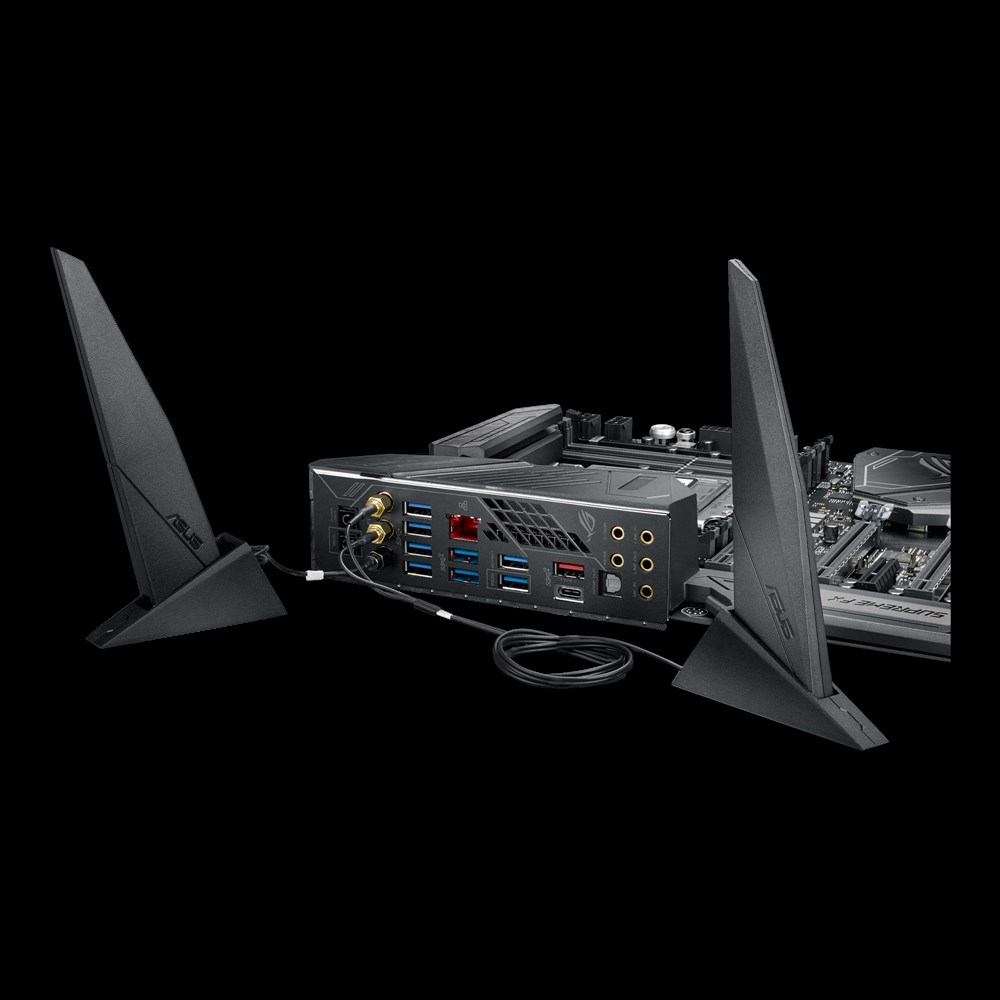

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

  • 2x Antenna Port
  • 1x RJ-45
USB

  • 8x USB 3.0 Type-A
  • 1x USB 3.1 Gen-2 Type-A
  • 1x USB 3.1 Gen-2 Type-C

Internal Connections
Fans

  • 6x 4-pin Fan Header
  • 1x 5-pin Fan Extension Header
Misc

  • 3x RGB Header
Power

  • 2x 8-pin 12V Power
Storage

  • 6x SATA3
  • 1x U.2
USB

  • 1x USB 2.0 Header
  • 2x USB 3.0 Header
  • 1x USB 3.1 Gen-2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Gray
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Intel I211-AT 1000 Mbit No

Wireless

Bluetooth Version 4.1
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac/ad

Expansion Slots
Slots

  • 4x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 2.0 x1 @ x1
  • 1x PCI-E 2.0 x4 @ x4
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 8 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 3600 MHz
Maximum Capacity 128 GB
Maximum Channels 4
ECC support Yes

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x E-Key 2230, For Wifi Module Only
