General Information
Manufacturer Asus
Year 2010
Socket(s) 1x AM3
Form Factor ATX
244 x 305 mm
Chipset AMD 890FX
Product Series Asus ROG
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

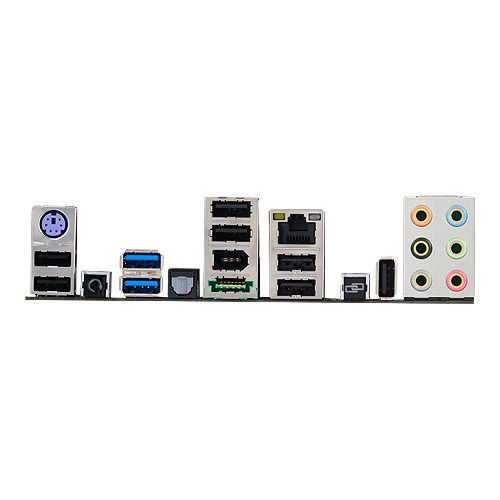

Back IO
Audio
  • 6x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc
  • 1x PS/2
Network
  • 1x RJ-45
Storage
  • 1x FireWire 400 6-pin
  • 1x eSATA2
USB
  • 7x USB 2 Type-A
  • 2x USB 3 Gen 1 Type-A

Internal Connections
Audio
  • 1x SPDIF Out Header
Fans
  • 8x 4-pin Fan Header
Power
  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage
  • 1x FireWire 400 Header
  • 1x SATA2
  • 6x SATA3
USB
  • 3x USB 2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Red

Network
Wired
Amount Chip Speed For IPMI
1x Marvell 8059 1000 Mbit No

Expansion Slots
Slots
  • 2x PCI-E 2.0 x16 @ x16
  • 1x PCI-E 2.0 x16 @ x8
  • 1x PCI-E 2.0 x4 @ x4
  • 1x PCI 5V @ 32-bit
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI No

Audio
Audiochip VIA VT2020
Audio Channels 10

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR3
Slot Type 240-pin DIMM
Maximum Speed 2000 MHz
Maximum Capacity 16 GB
Maximum Channels 2
ECC support No
