General Information
| Manufacturer | Asus |
|---|---|
| Year | 2011 |
| Socket(s) |
1x
LGA 1366
|
| Form Factor |
E-ATX
269 x 305 mm |
| Chipset | Intel X58 |
| Product Series | Asus ROG |
| Market | Consumer |
| MSRP | US $? |
| Manual | Download Manual |
| Product Page | Go to website |

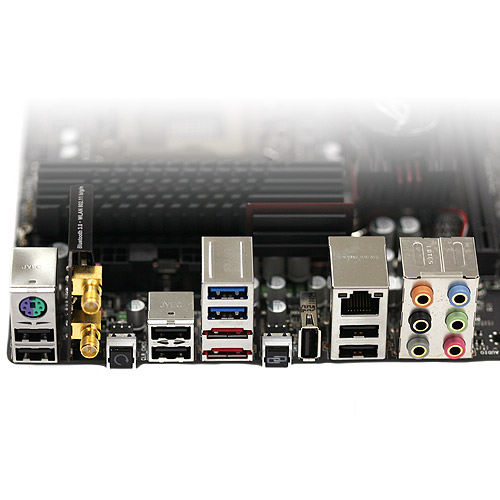

Back IO
Audio
- 6x Analog Audio Jack
Misc
- 1x PS/2
Network
- 2x Antenna Port
- 1x RJ-45
Storage
- 2x eSATA2
USB
- 7x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 8x 4-pin Fan Header
Power
- 1x 24-pin ATX Power
- 2x 8-pin 12V Power
- 1x Molex Power
Storage
- 6x SATA2
- 2x SATA3
USB
- 2x USB 2 Header
- 1x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel 82567V | 1000 Mbit | No |
| 1x | Killer E2100 | 1000 Mbit | No |
Wireless
| Bluetooth Version | 3.0 |
|---|---|
| Wifi 5GHz Support | No |
| Wifi Protocol | 802.11 a/b/g/n |
Expansion Slots
Slots
- 2x PCI-E 2.0 x16 @ x16
- 2x PCI-E 2.0 x16 @ x8
- 2x PCI-E 1.0 x1 @ x1
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
General Notes

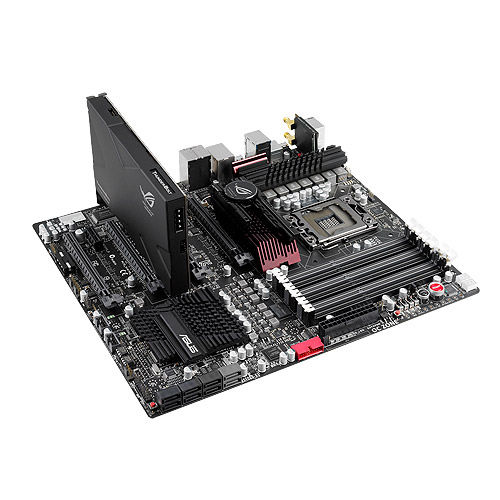

This board comes with an extra sound/network card.
Audio
| Audiochip | Realtek ALC889 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 6 slots with the following specifications:
| Slot Protocol | DDR3 |
|---|---|
| Slot Type | 240-pin DIMM |
| Maximum Speed | 2200 MHz |
| Maximum Capacity | 24 GB |
| Maximum Channels | 3 |
| ECC support | No |
