General Information
Manufacturer Asus
Year 2018
Socket(s) 1x LGA 1151
Form Factor Mini-ITX
170 x 170 mm
Chipset Intel H370
Product Series Asus ROG
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

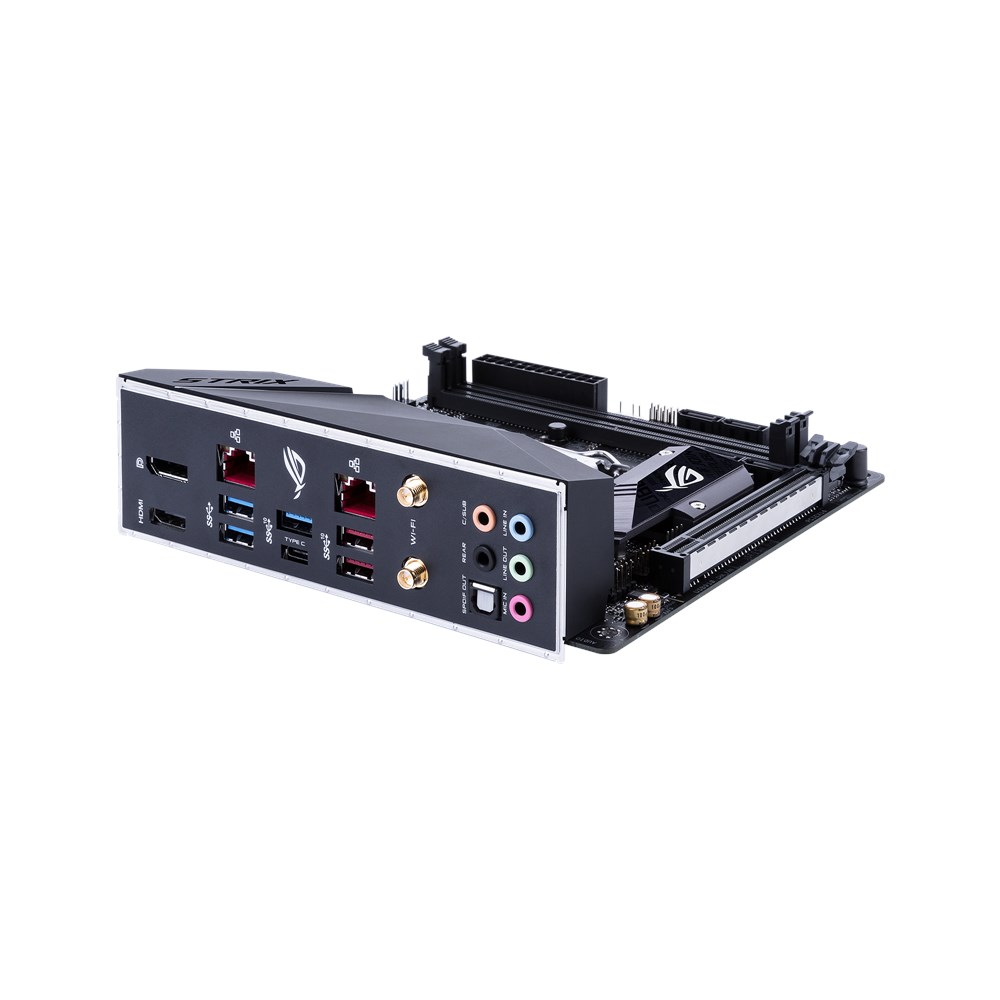

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

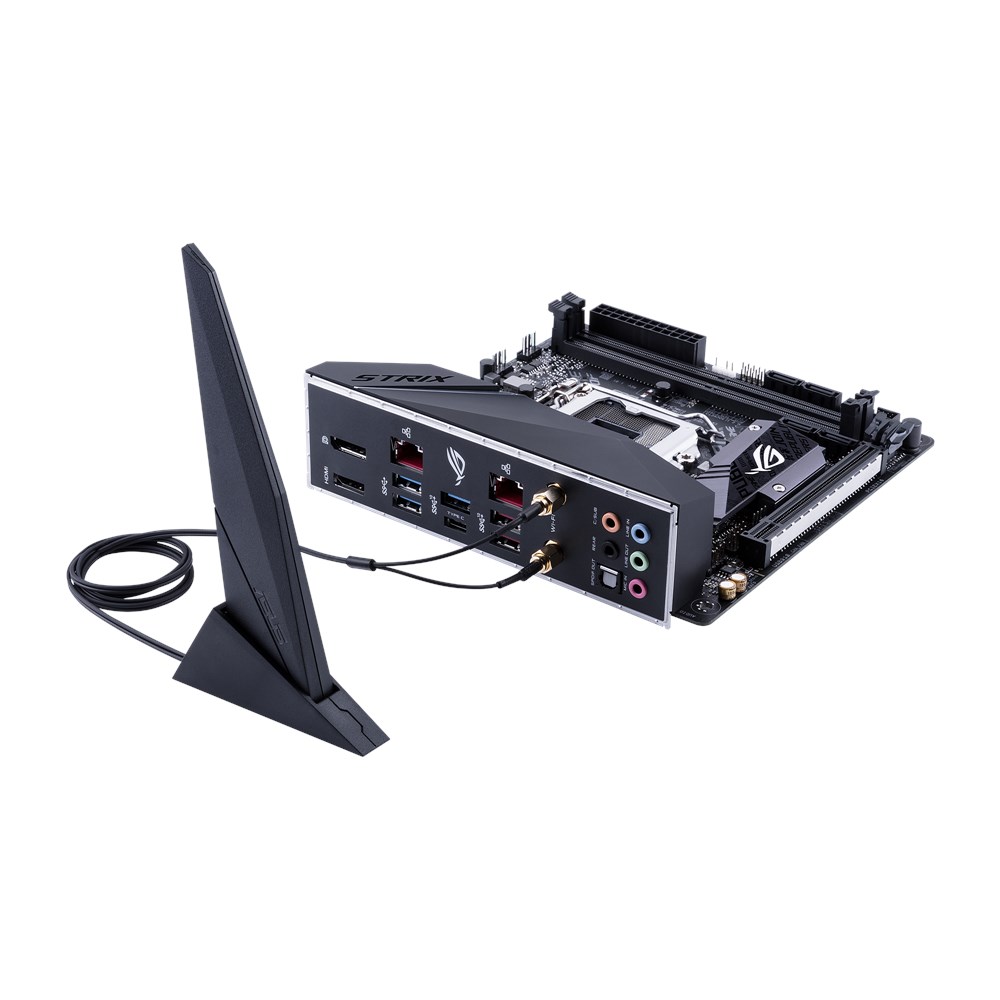

  • 2x Antenna Port
  • 2x RJ-45
USB

  • 3x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 1 Type-C
  • 2x USB 3 Gen 2 Type-A
Video

  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections
Fans

  • 3x 4-pin Fan Header
Misc

  • 1x Aura Addressable RGB Header
Power

  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage

  • 4x SATA3
USB

  • 1x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Silver
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Intel I219-V 1000 Mbit No
1x Realtek RTL8111H 1000 Mbit No

Wireless

Bluetooth Version 5.0
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 1x PCI-E 3.0 x16 @ x16
Crossfire & SLI
AMD Crossfire No
Nvidia SLI No

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 2 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2666 MHz
Maximum Capacity 32 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4,
