General Information
Manufacturer Asus
Year 2018
Socket(s) 1x LGA 1151
Form Factor Micro-ATX
244 x 244 mm
Chipset Intel B360
Product Series Asus ROG
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

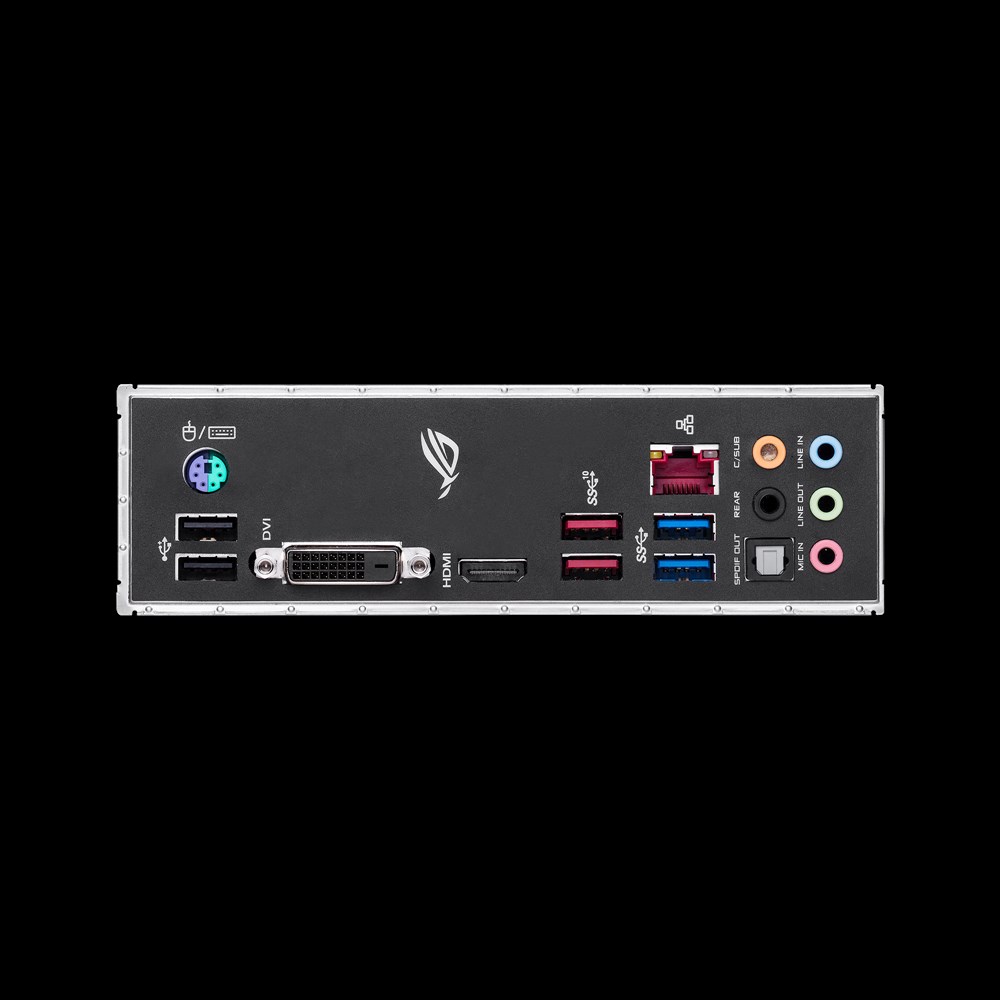

Back IO
Audio
  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Misc
  • 1x PS/2
Network
  • 1x RJ-45
USB
  • 2x USB 2 Type-A
  • 2x USB 3 Gen 1 Type-A
  • 2x USB 3 Gen 2 Type-A
Video
  • 1x DVI-D
  • 1x HDMI Out

Internal Connections
Fans
  • 4x 4-pin Fan Header
Misc
  • 1x RGB Header
  • 1x Serial Header
  • 1x TPM Header
Power
  • 1x 24-pin ATX Power
  • 1x 8-pin 12V Power
Storage
  • 6x SATA3
USB
  • 2x USB 2 Header
  • 1x USB 3 Gen 1 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Red

Network
Wired
Amount Chip Speed For IPMI
1x Intel I219-V 1000 Mbit No

Expansion Slots
Slots
  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x4
  • 2x PCI-E 3.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI No

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 2666 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4,
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x2, SATA3,
