General Information
Manufacturer Asus
Year 2017
Socket(s) 1x LGA 1151
Form Factor ATX
244 x 305 mm
Chipset Intel Z270
Market Consumer
MSRP US $?
Manual Download Manual
Product Page Go to website
Comparison feature is in beta and not finished!

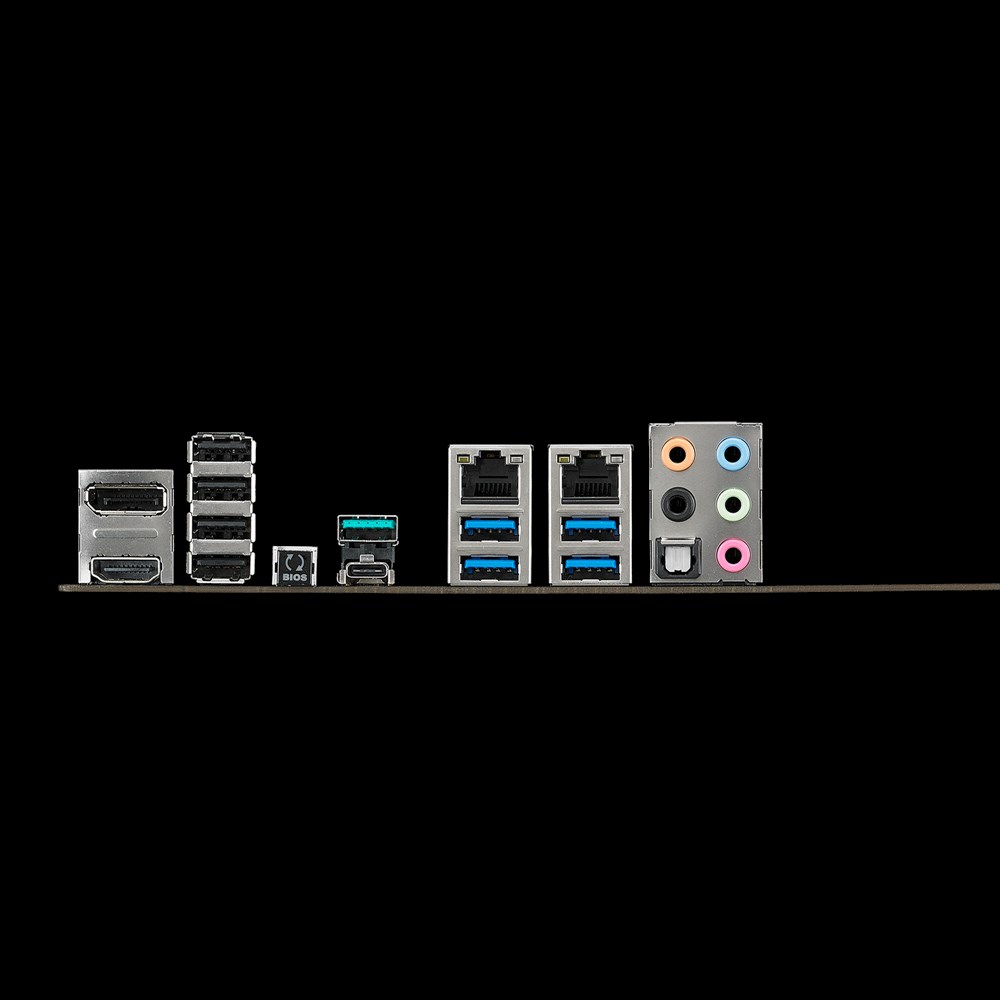

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

  • 2x RJ-45
USB

  • 4x USB 2.0 Type-A
  • 4x USB 3.0 Type-A
  • 1x USB 3.1 Gen-2 Type-A
  • 1x USB 3.1 Gen-2 Type-C
Video

  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections
Fans

  • 7x 4-pin Fan Header
Misc

  • 1x Chassis Intrusion Header
  • 1x RGB Header
  • 1x Serial Header
  • 1x TPM Header
  • 1x Thunderbolt 5-pin Header
Power

  • 1x 24-pin ATX Power
  • 1x 6-pin 12V Power
  • 2x 8-pin 12V Power
Storage

  • 6x SATA3
  • 2x U.2
USB

  • 1x USB 2.0 Header
  • 1x USB 3.0 Header
  • 1x USB 3.1 Gen-2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
  • Silver

Network
Wired
Amount Chip Speed For IPMI
1x Intel I210-AT 1000 Mbit No
1x Intel I219-LM 1000 Mbit No

Expansion Slots
Slots

  • 2x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x4 @ x4
  • 2x PCI-E 3.0 x16 @ x8
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 3866 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2242, 2260, 2280, PCI-E 3.0 x4,
1x M-Key 22110, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,

Reviews
Reviewer Review Language Review Type Review Date
TweakTown English Video June 17, 2017 View Review
