General Information
Manufacturer Asus
Year 2018
Socket(s) 1x LGA 1151
Form Factor E-ATX
277 x 305 mm
Chipset Intel Z390
Product Series Asus ROG
Market Consumer
MSRP US $?
Product Page Go to website
Comparison feature is in beta and not finished!

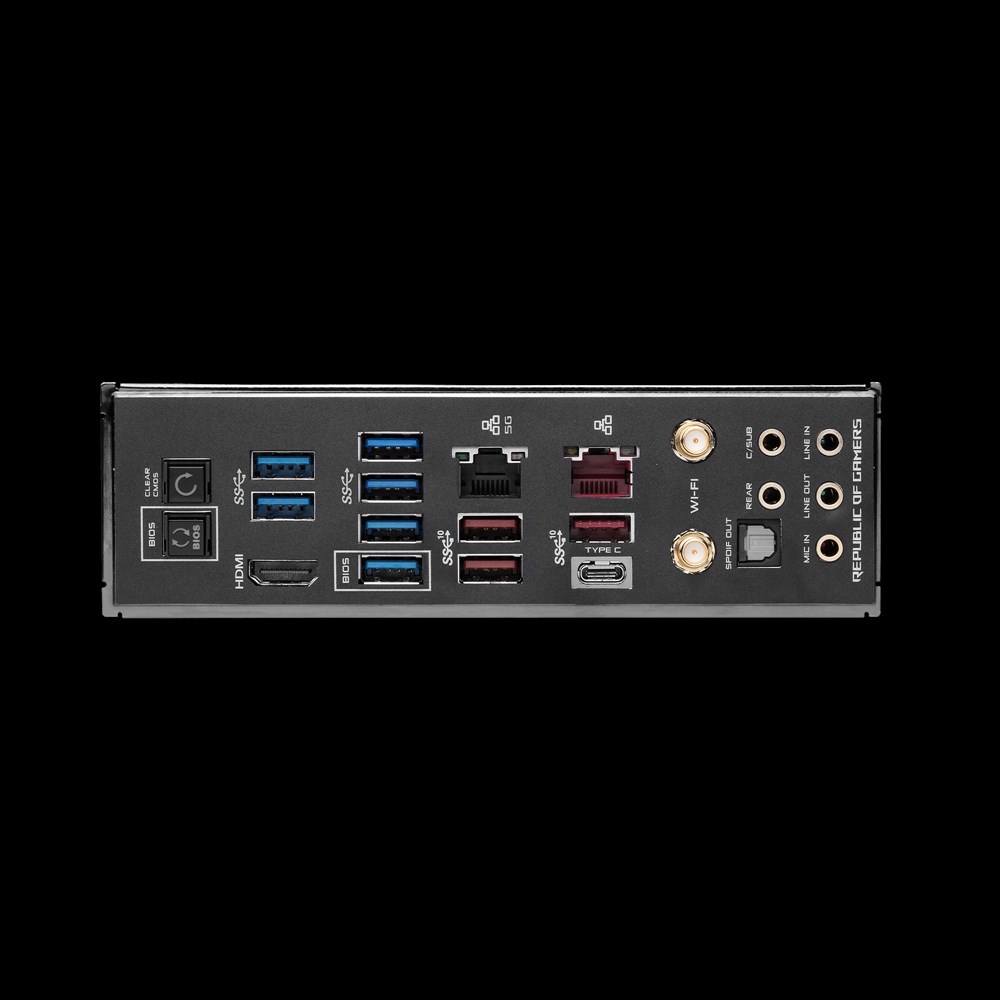

Back IO
Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out
Network

  • 2x Antenna Port
  • 2x RJ-45
USB

  • 6x USB 3 Gen 1 Type-A
  • 3x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C
Video

  • 1x HDMI Out

Internal Connections
Fans

  • 14x 4-pin Fan Header
  • 1x 5-pin Fan Extension Header
Misc

  • 2x Aura Addressable RGB Header
  • 2x RGB Header
  • 1x Thunderbolt 5-pin Header
Power

  • 1x 24-pin ATX Power
  • 2x 8-pin 12V Power
  • 1x Molex Power
Storage

  • 6x SATA3
USB

  • 2x USB 2 Header
  • 2x USB 3 Gen 1 Header
  • 1x USB 3 Gen 2 Header

Misc. Information
PCB Color Black
Other Colors
  • Black
LED Color RGB

Network
Wired
Amount Chip Speed For IPMI
1x Aquantia AQC111 5000 Mbit No
1x Intel I219-V 1000 Mbit No

Wireless

Bluetooth Version 5.0
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac

Expansion Slots
Slots

  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x8
  • 1x PCI-E 3.0 x16 @ x4
  • 1x PCI-E 3.0 x1 @ x1
Crossfire & SLI
AMD Crossfire Yes
Nvidia SLI Yes

Audio
Audiochip Realtek ALC1220
Audio Channels 7.1

Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4400 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No

M.2 Slots
M.2 Connections
Amount Slot Sizes Speeds
1x M-Key 22110, 2242, 2260, 2280, PCI-E 3.0 x4,
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,

Reviews
Reviewer Review Language Review Type Review Date
No reviews found
