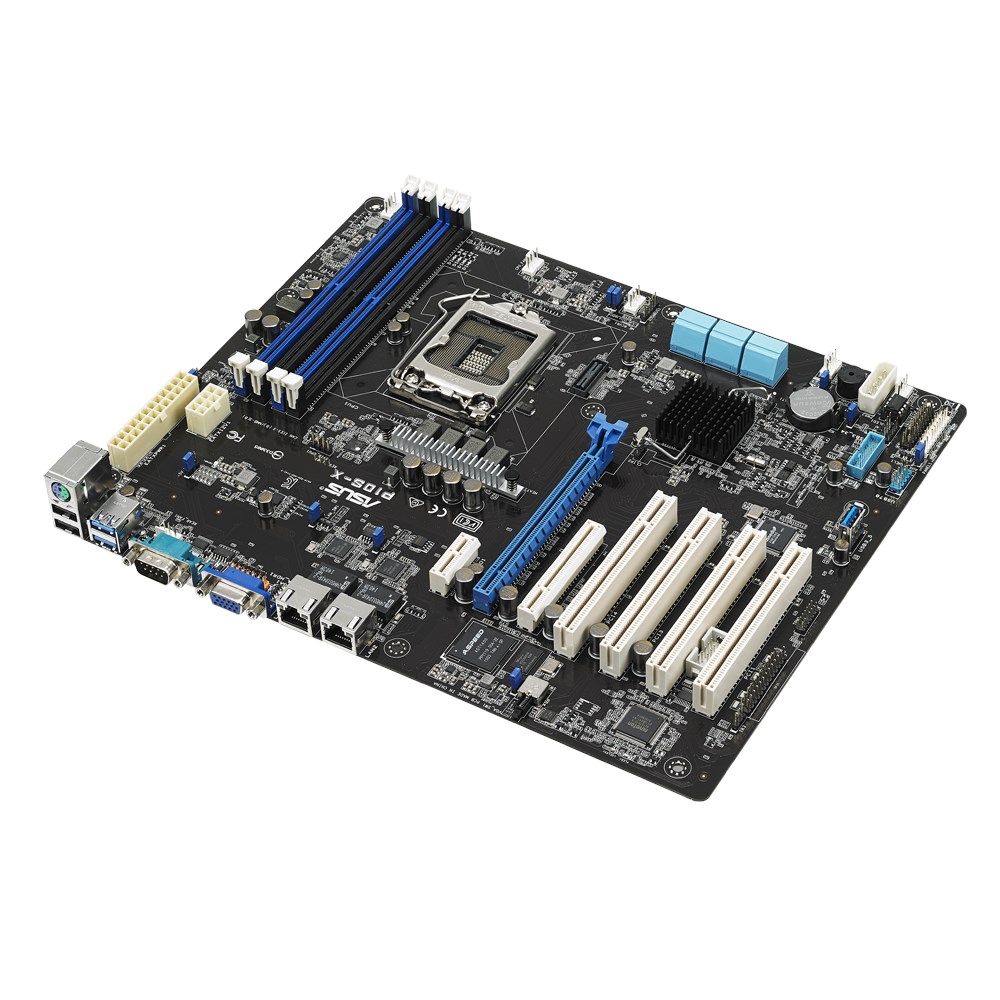

General Information
| Manufacturer | Asus |
|---|---|
| Year | 2016 |
| Socket(s) |
1x
LGA 1151
|
| Form Factor |
ATX
244 x 305 mm |
| Chipset | Intel C232 |
| Market | Server |
| MSRP | US $? |
| Product Page | Go to website |

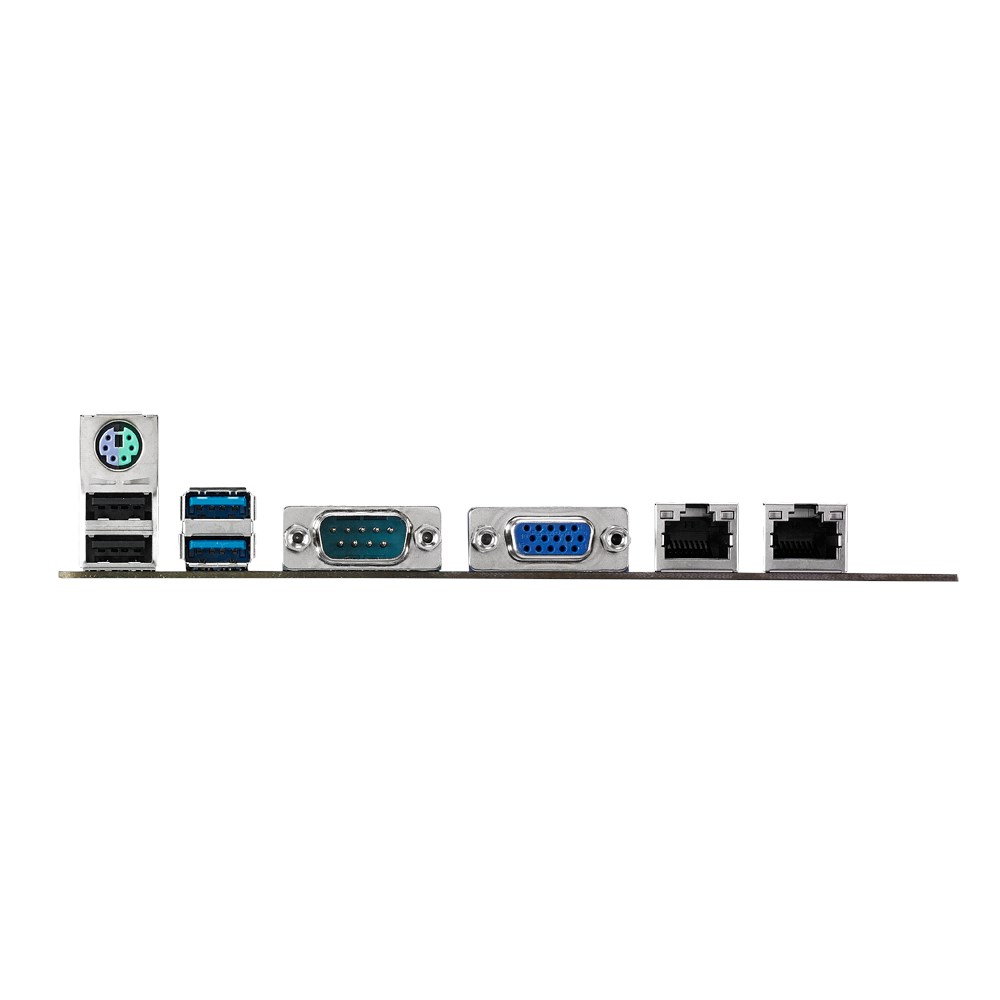

Back IO
Misc
- 1x PS/2
- 1x Serial Port
Network
- 2x RJ-45
USB
- 2x USB 2 Type-A
- 2x USB 3 Gen 1 Type-A
Video
- 1x VGA
Internal Connections
Fans
- 6x 4-pin Fan Header
Misc
- 1x Chassis Intrusion Header
- 1x Parallel Header
- 1x SGPIO
- 1x Serial Header
- 1x TPM Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
- 1x Molex Power
Storage
- 6x SATA3
USB
- 1x USB 2 Header
- 1x USB 3 Gen 1 Header
- 1x USB 3 Gen 1 Type-A
Video
- 1x VGA Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
| Onboard GPU | Aspeed AST1400 |
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 2x | Intel I210-AT | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x16 @ x16
- 1x PCI-E 3.0 x8 @ x4
- 1x MIO x1 @ x1
- 4x PCI 5V @ 32-bit
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | This board has no onboard audio |
|---|---|
| Audio Channels |
Memory
This board has 4 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 2400 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 2 |
| ECC support | No |
