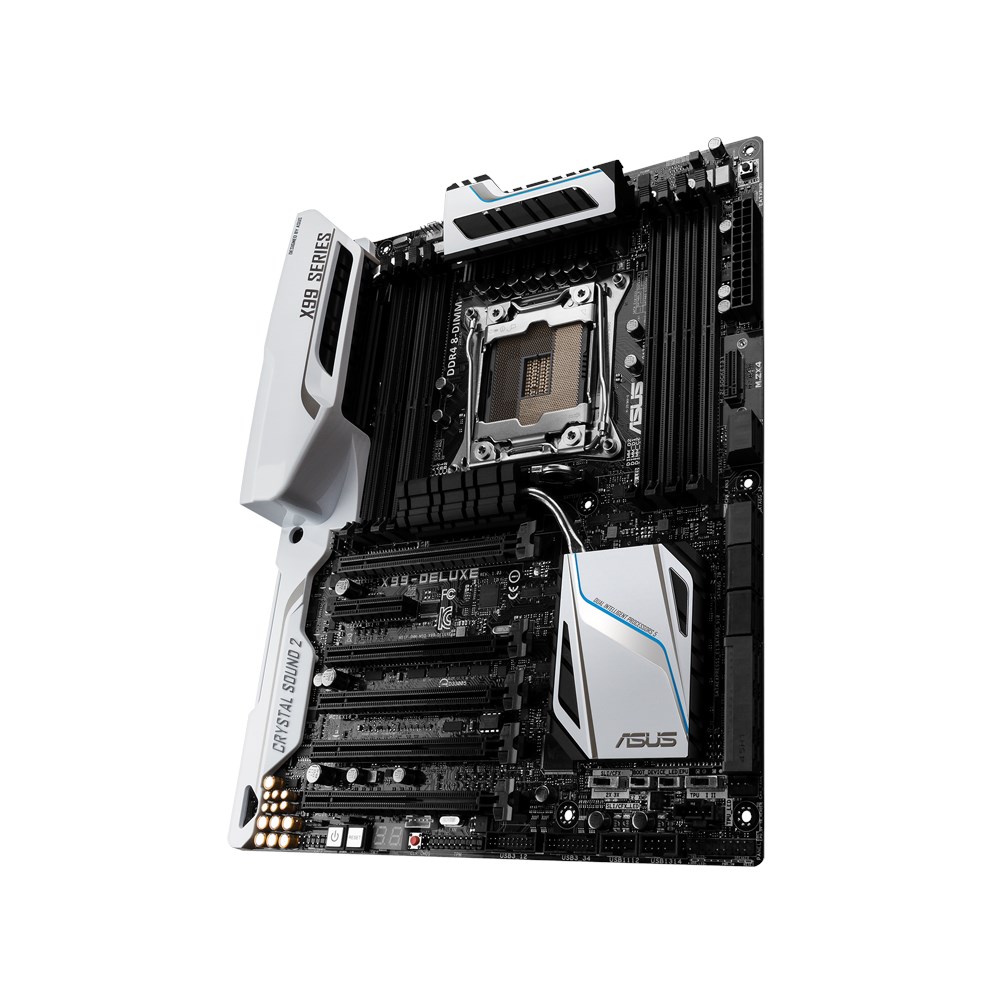

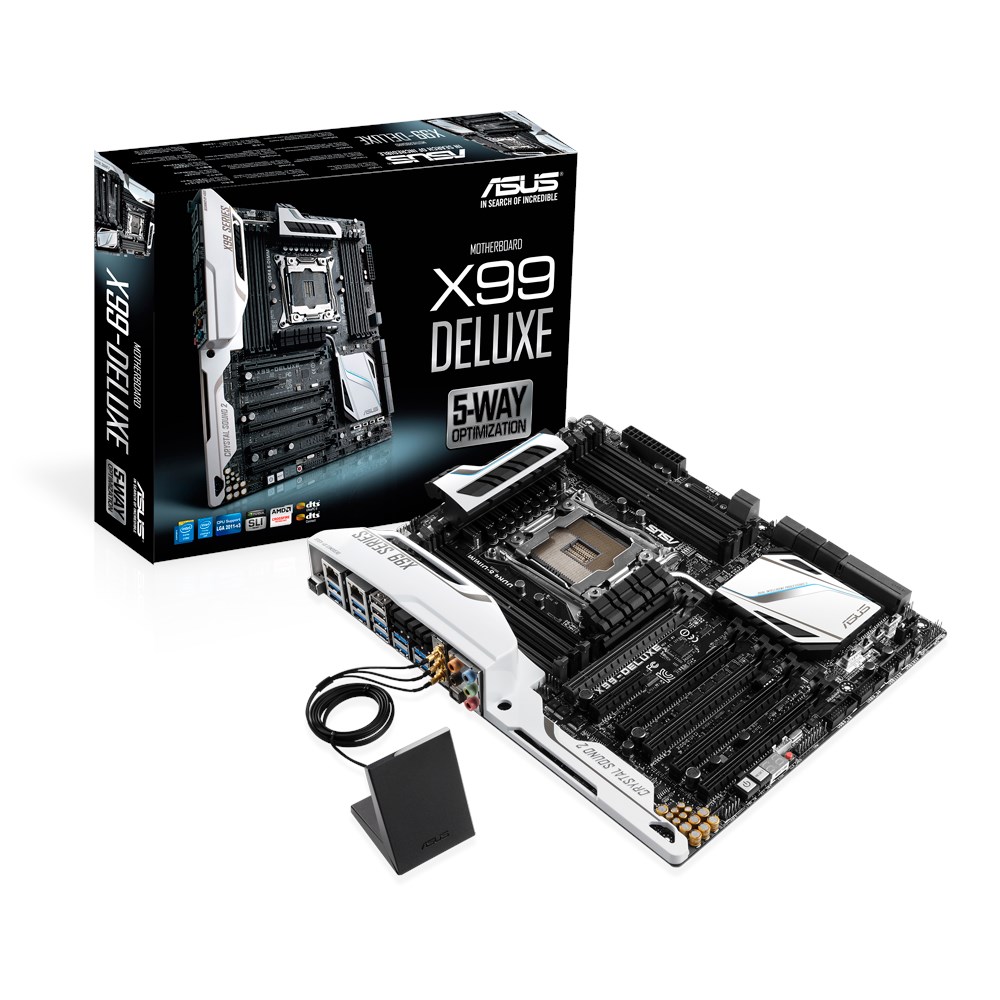

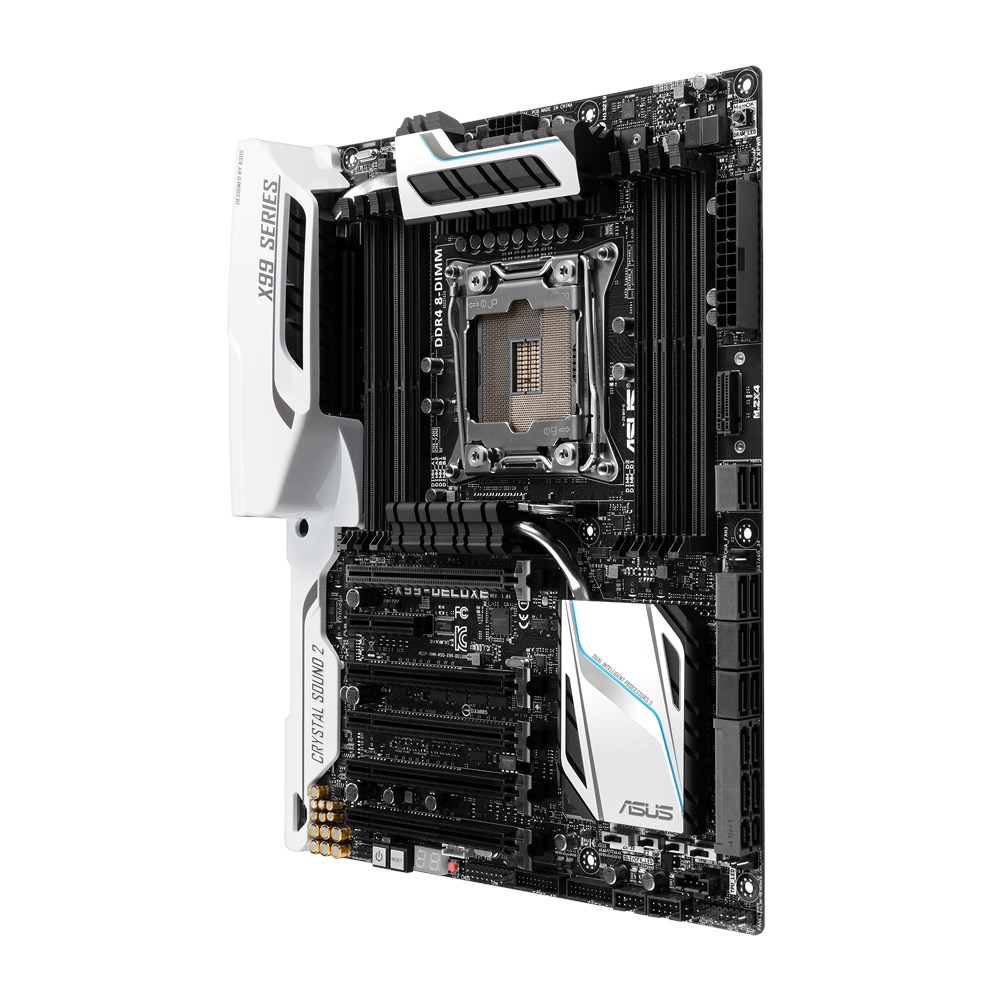

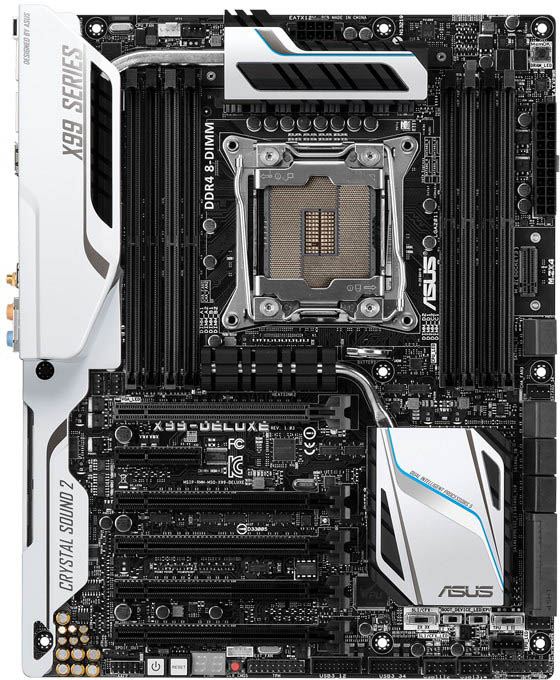

General Information
| Manufacturer | Asus |
|---|---|
| Year | 2014 |
| Socket(s) |
1x
LGA 2011-3
|
| Form Factor |
ATX
244 x 305 mm |
| Chipset | Intel X99 |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

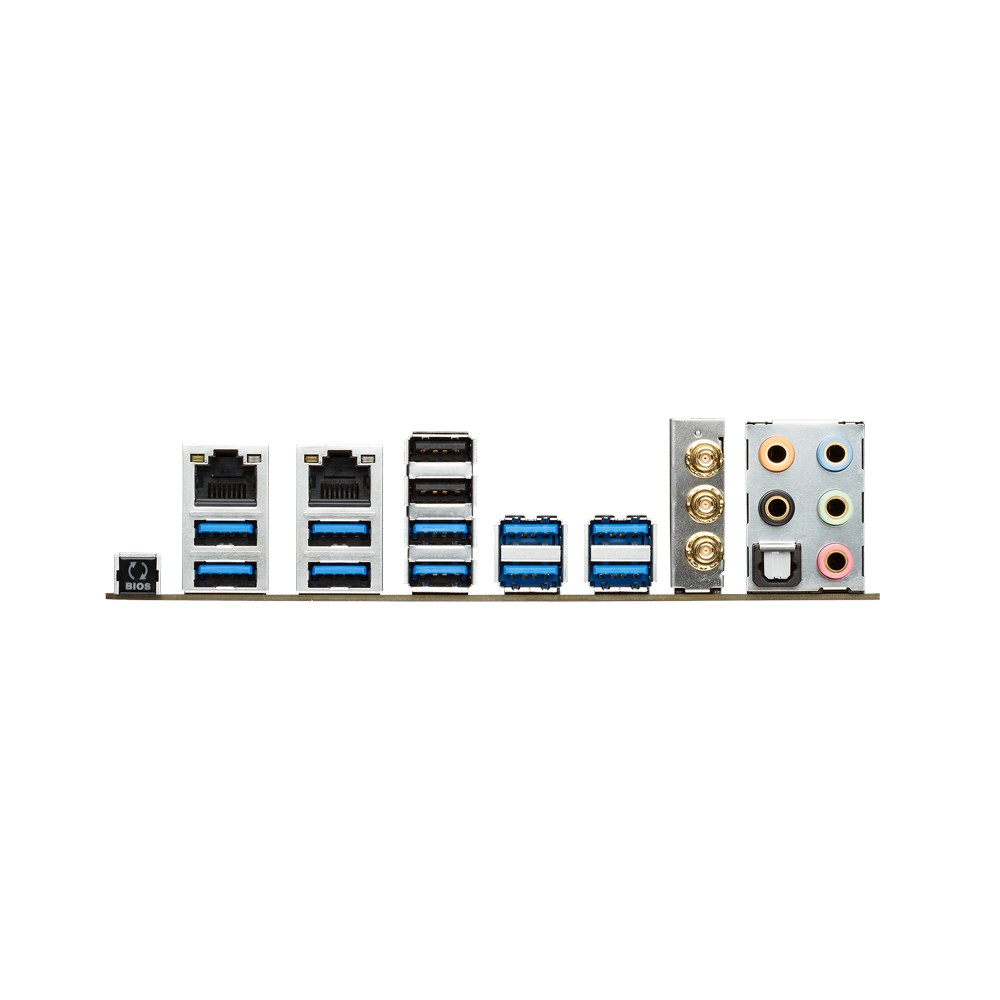

Back IO
Audio
- 5x Analog Audio Jack
- 1x Optical SPDIF Out
Network
- 3x Antenna Port
- 2x RJ-45
USB
- 2x USB 2 Type-A
- 10x USB 3 Gen 1 Type-A
Internal Connections
Audio
- 1x SPDIF Out Header
Fans
- 6x 4-pin Fan Header
- 1x 5-pin Fan Extension Header
Misc
- 1x Chassis Intrusion Header
- 1x Serial Header
- 1x TPM Header
- 1x Thunderbolt 5-pin Header
Power
- 1x 24-pin ATX Power
- 1x 8-pin 12V Power
Storage
- 2x SATA Express
- 12x SATA3
USB
- 2x USB 2 Header
- 2x USB 3 Gen 1 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel I218-V | 1000 Mbit | No |
| 1x | Intel I211-AT | 1000 Mbit | No |
Wireless
| Bluetooth Version | 4.0 |
|---|---|
| Wifi 5GHz Support | Yes |
| Wifi Protocol | 802.11 a/b/g/n/ac |
Expansion Slots
Slots
- 2x PCI-E 3.0 x16 @ x16
- 3x PCI-E 3.0 x16 @ x8
- 1x PCI-E 2.0 x4 @ x4
Crossfire & SLI
| AMD Crossfire | Yes |
| Nvidia SLI | Yes |
Audio
| Audiochip | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 8 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 288-pin DIMM |
| Maximum Speed | 3200 MHz |
| Maximum Capacity | 64 GB |
| Maximum Channels | 4 |
| ECC support | No |

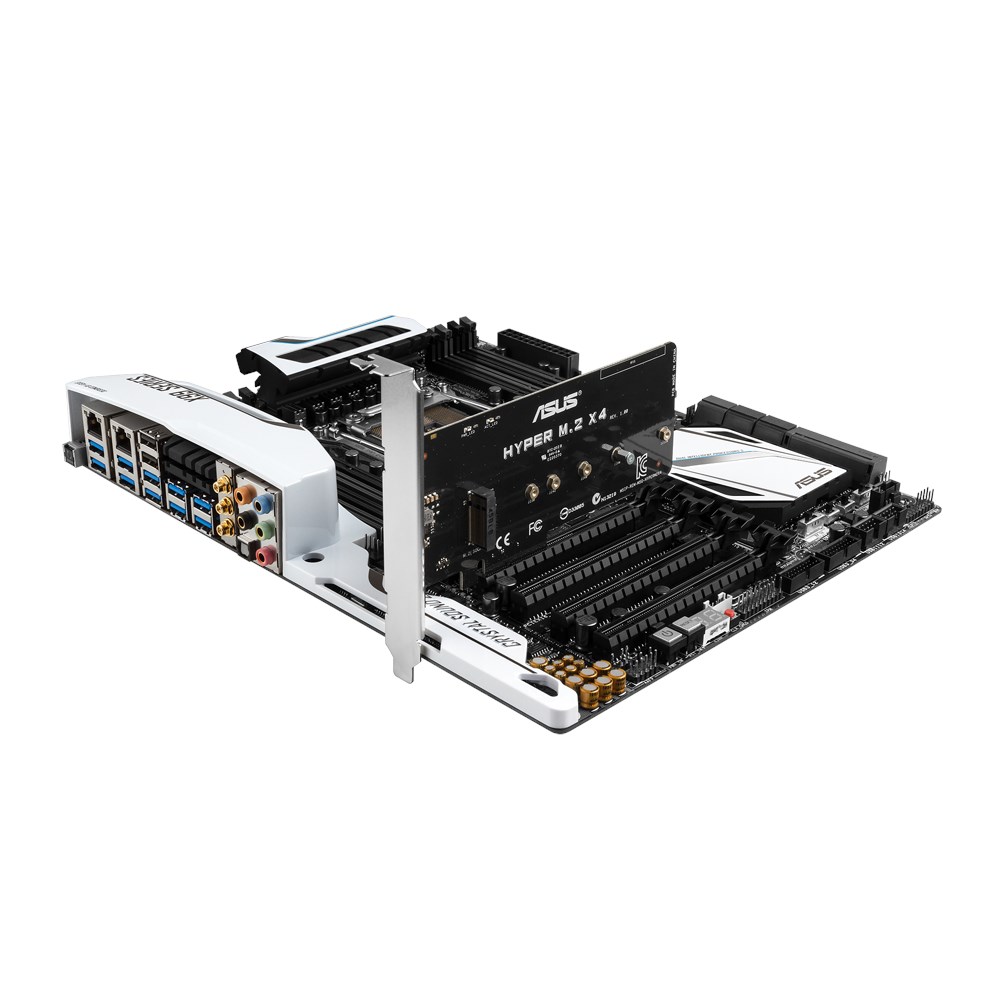

M.2 Slots
M.2 Connections
| Amount | Slot | Sizes | Speeds |
|---|---|---|---|
| 1x | M-Key | 2242, 2260, 2280, | PCI-E 3.0 x4, |
